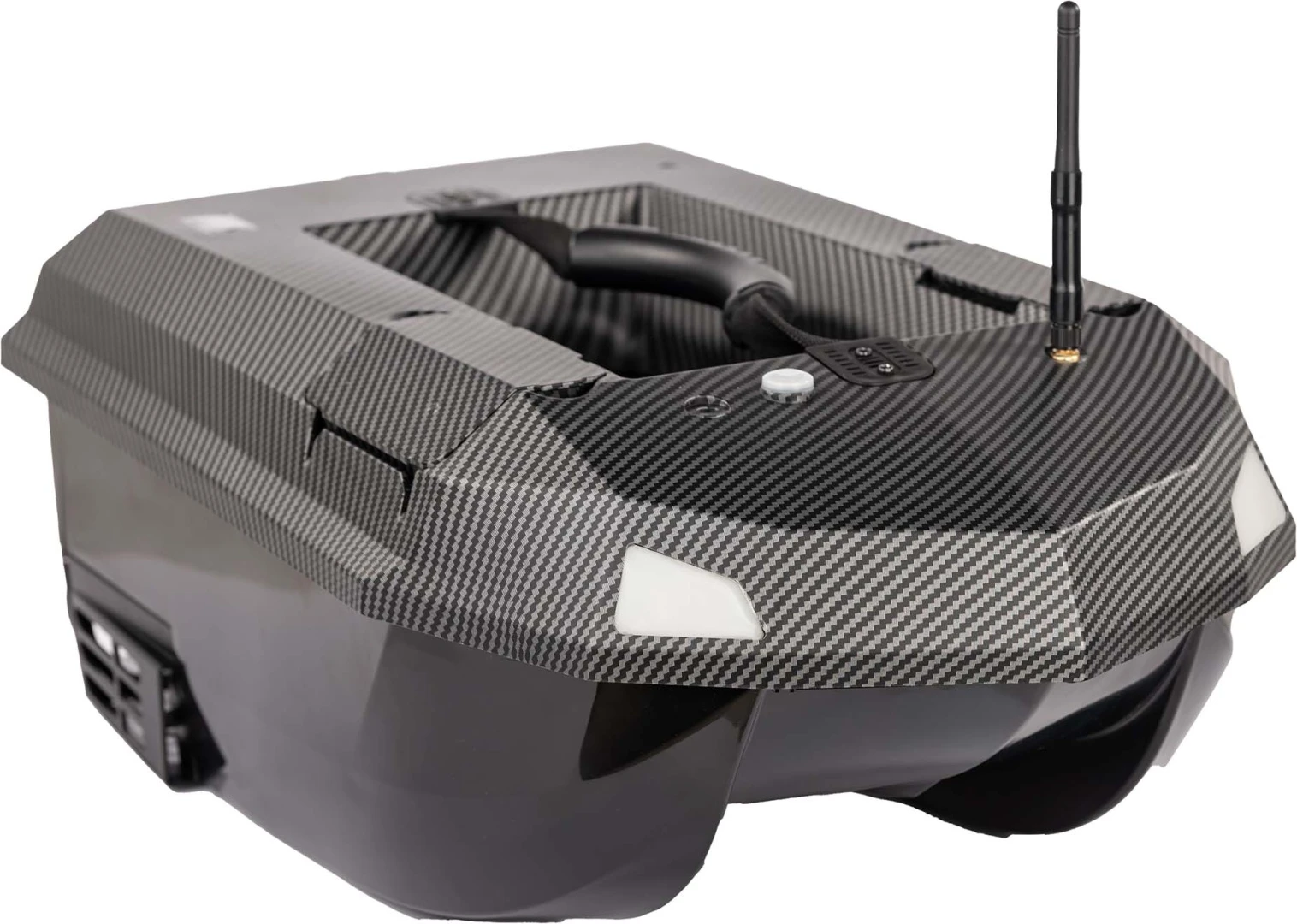

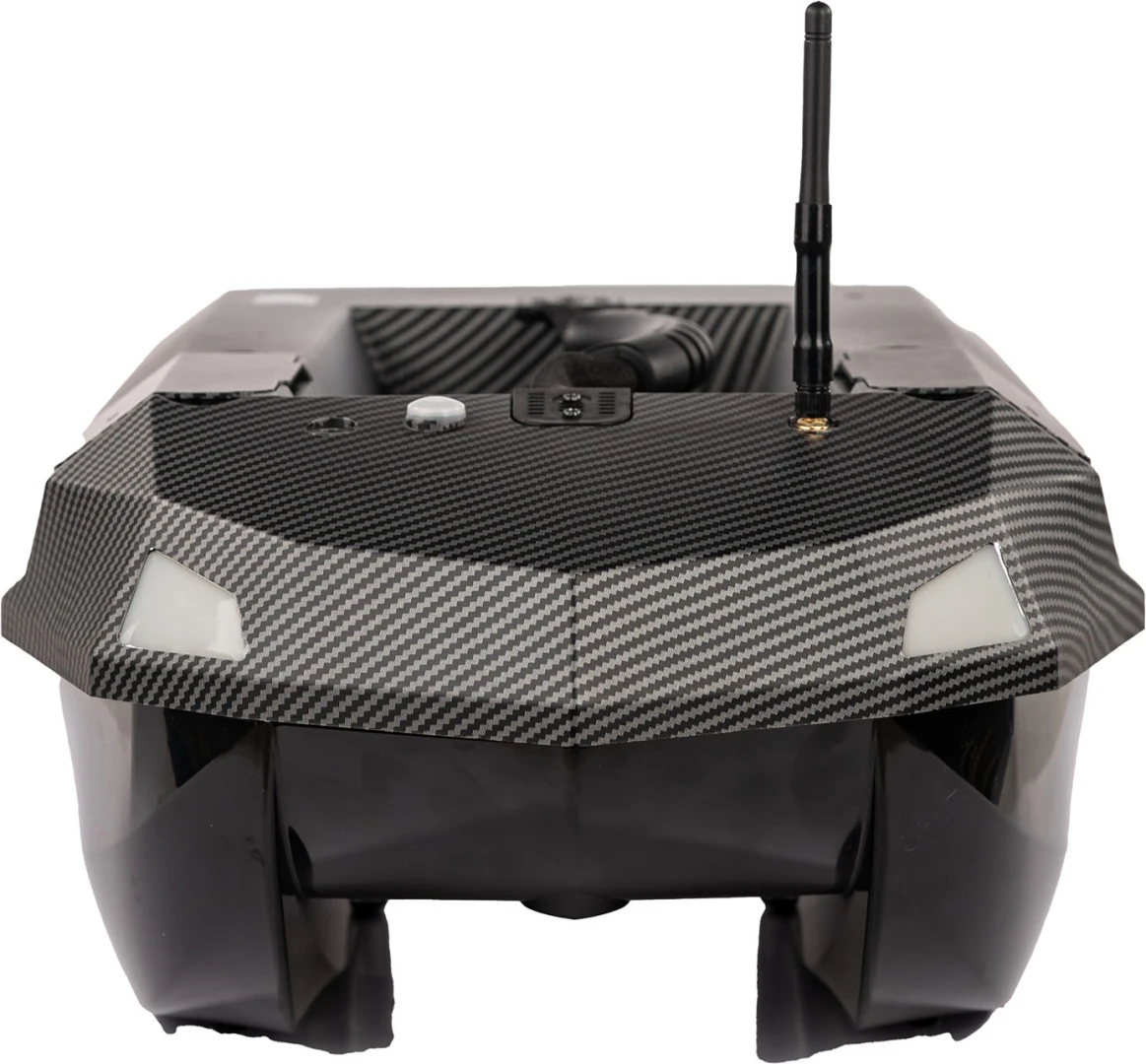

Manuowell Assassin V2 Carbon Boat – bait boat with GPS and M700 fish finder

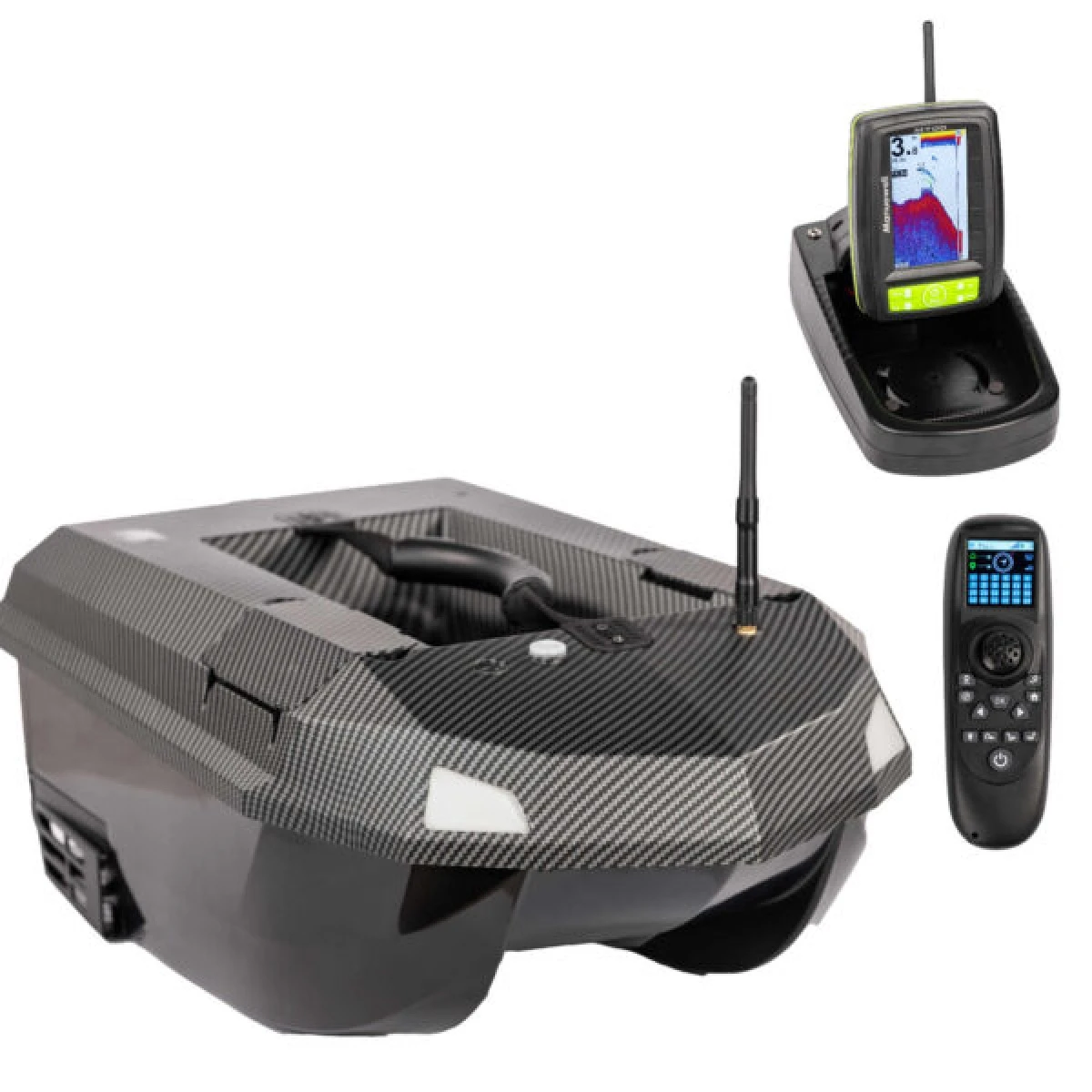

The Manuowell Assassin V2 Carbon Boat is a bait boat combining GPS, autopilot and the colour Manuowell M700 fish finder. The system allows you to identify bottom contours and hardness, locate fish, save selected spots and automatically deliver your rig and bait to them.
Swim mapping with the Manuowell M700 fish finder
The precise fish finder beam helps you locate underwater obstacles, shallows, drop-offs and fish. The bottom hardness discrimination function provides additional information when selecting a spot to place your rig. Once you have found the right location, you can save its position in the boat's GPS system.
Fish finder useful for Zig Rig fishing
The Manuowell M700 allows you to monitor fish holding in mid-water, not just close to the bottom. Information about the depth at which they are holding makes it easier to select the right Zig Rig hooklink length and position the bait at the correct level.
Colour display and transmission across 20 channels

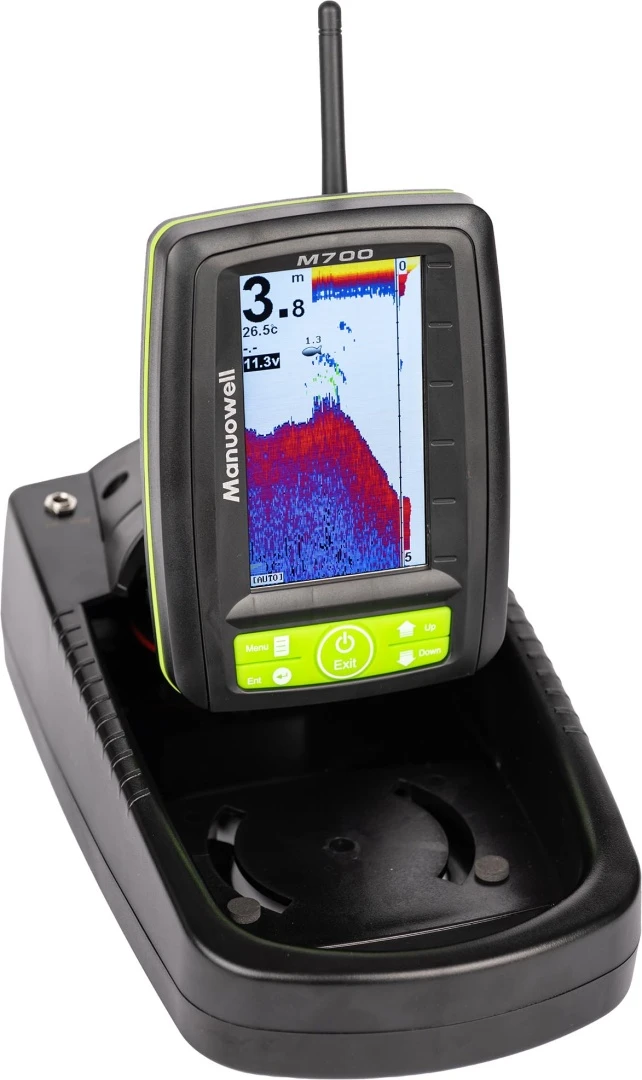

The fish finder monitor features a 4.3-inch colour display with a resolution of 480 × 272 pixels. Transmission operates at 2.4 GHz, while 20 independent channels allow you to select the appropriate communication channel. The fish finder range is up to 300 m.
GPS with 36 waypoints and autopilot functions

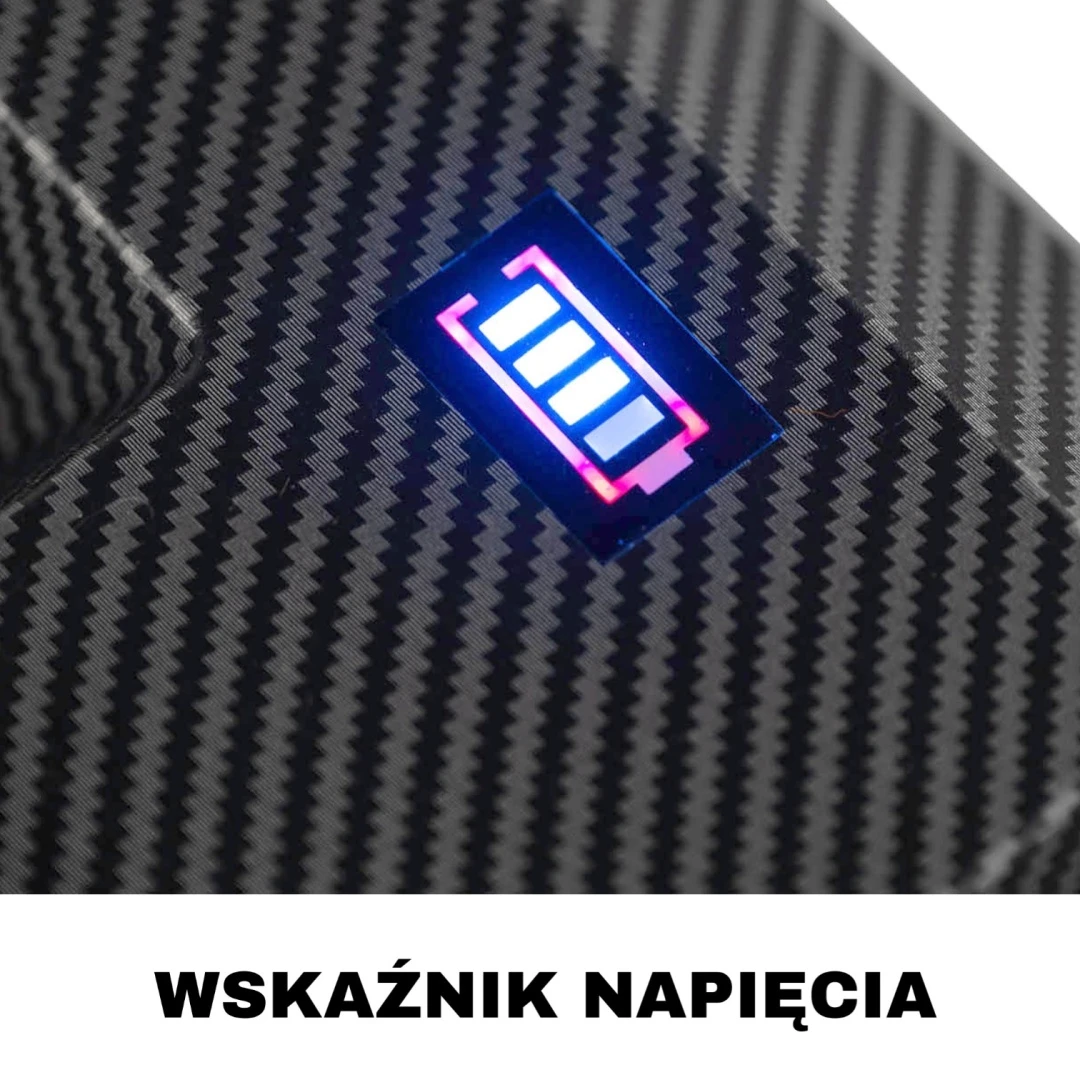

The navigation system allows you to save up to 36 GPS waypoints and a base point used by the Auto Home function. The autopilot offers automatic straight-line navigation, course correction, cruise control and an anchor function that keeps the boat in a selected position. The controller also displays the distance from the bank and target, the number of satellites, signal strength and the battery status of the boat and controller.
Safe return to the bank
When the battery level is low or the connection is lost, the boat can automatically return to the saved base point. The control range is up to 500 m, while the fish finder transmits an image up to 300 m – these are independent parameters of the two systems.
Bait hopper and efficient propulsion

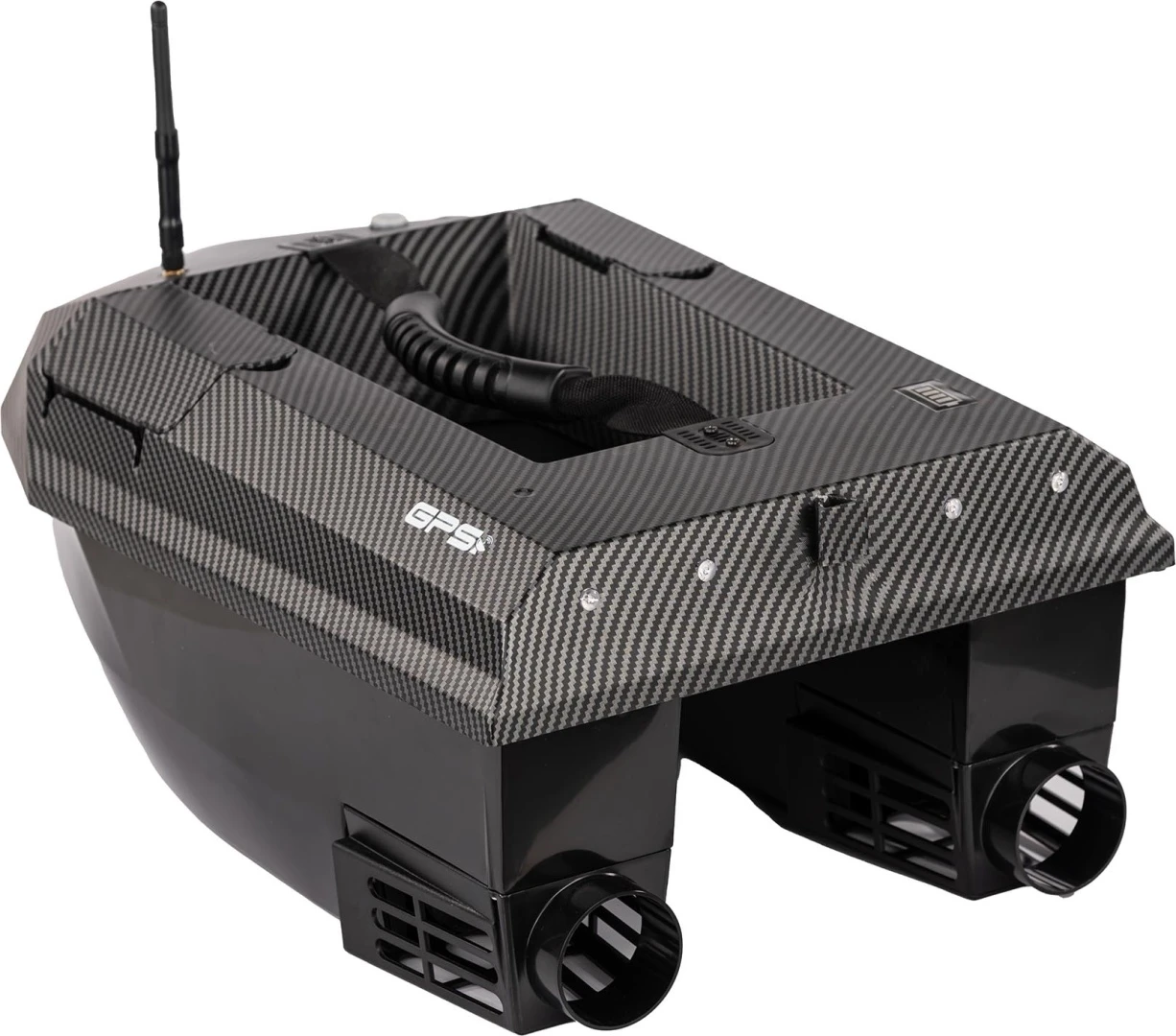

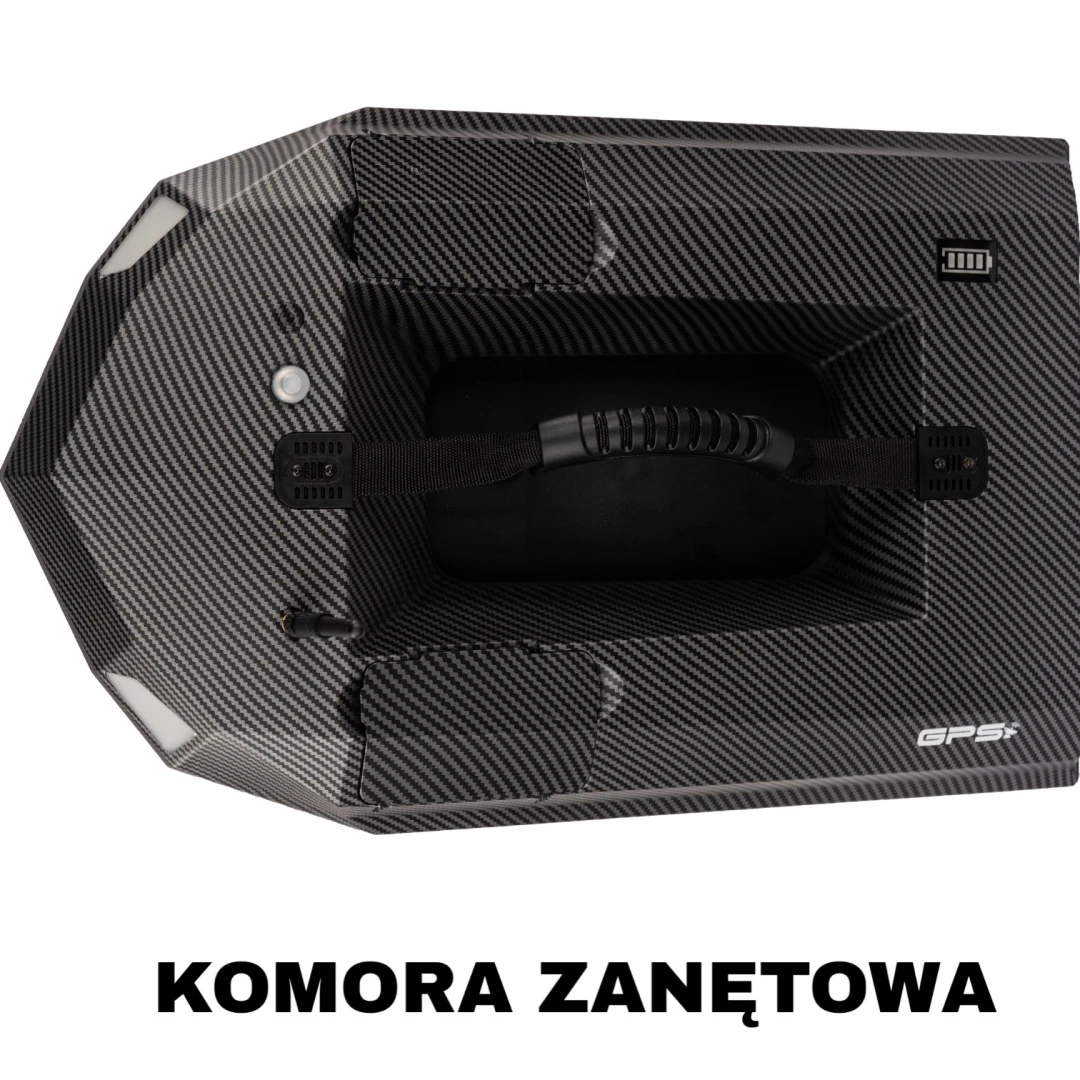

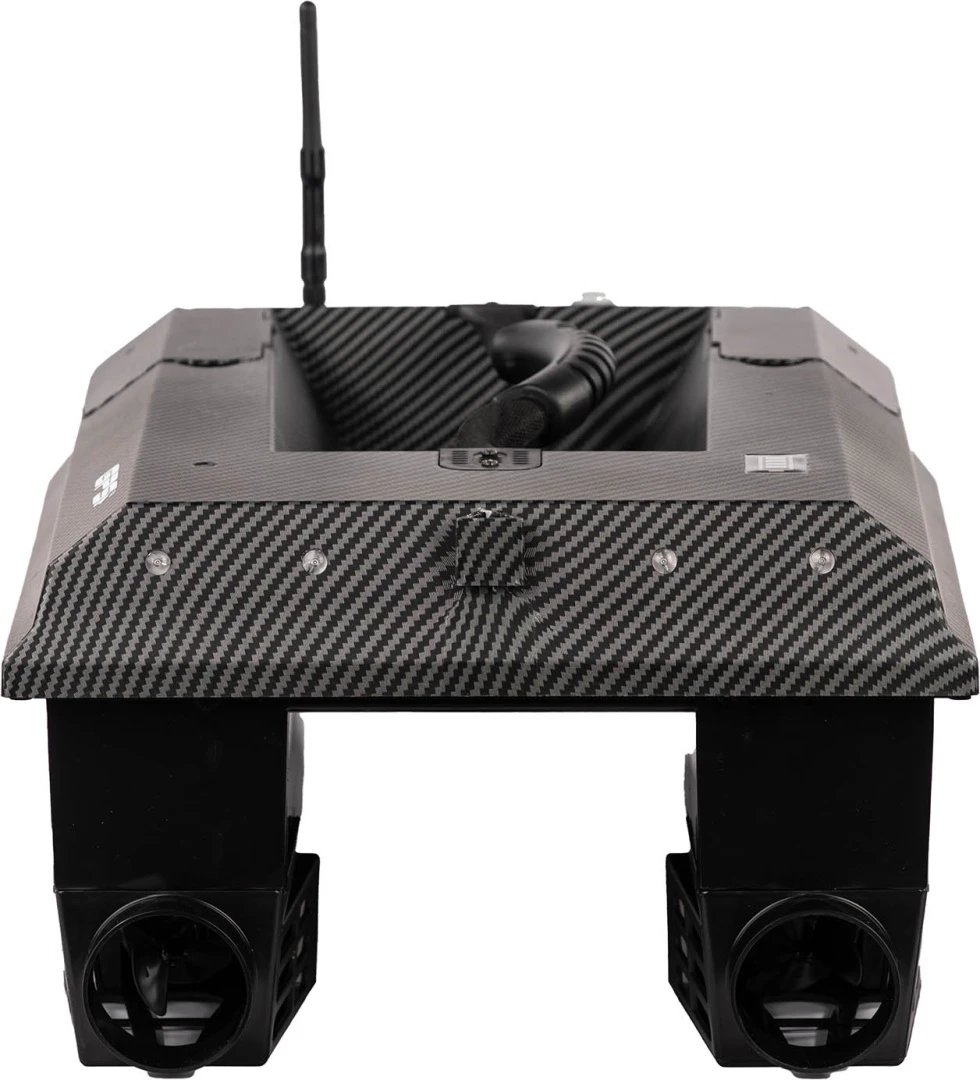

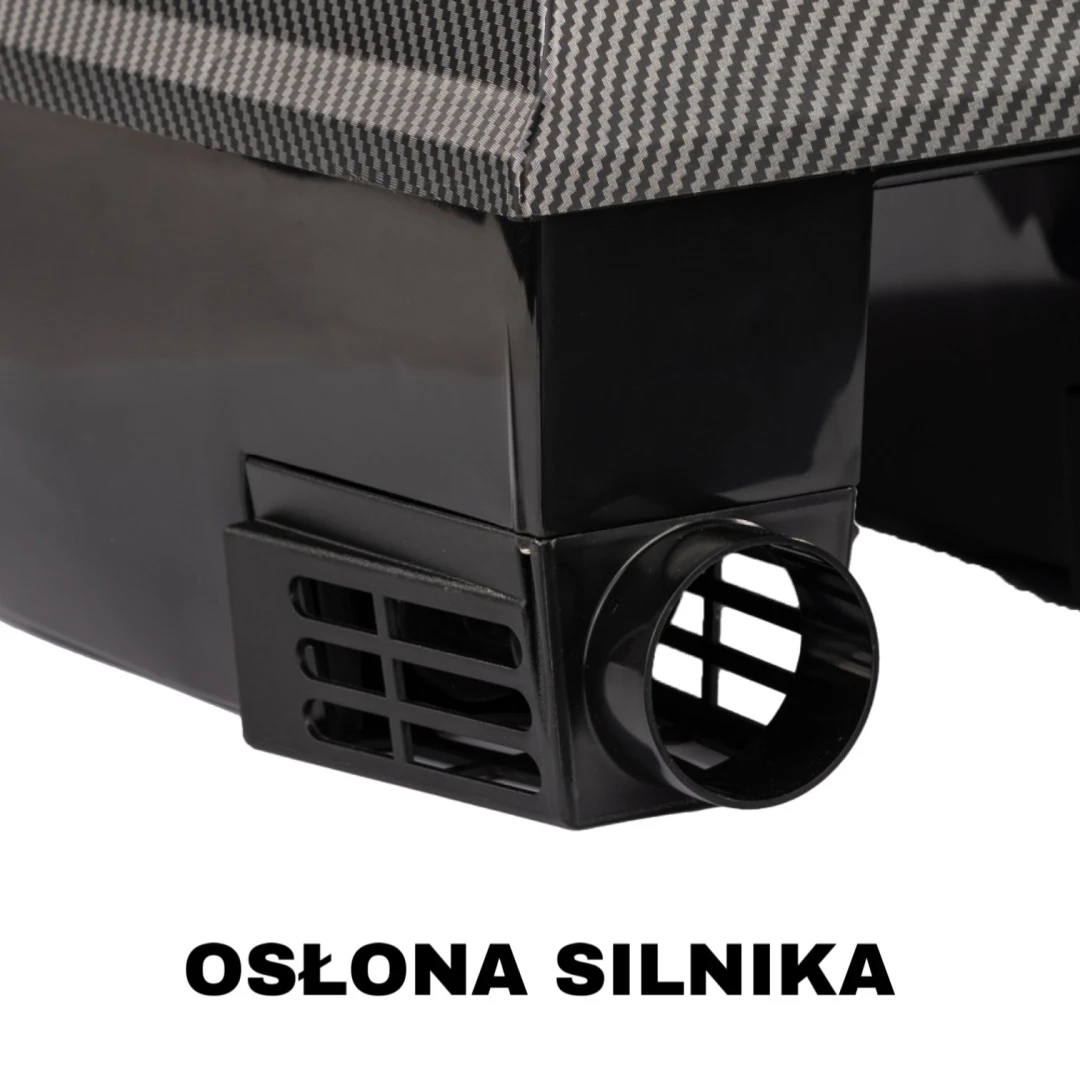

The central hopper, measuring 27 × 16 × 8 cm, holds up to 3 kg of bait. Its electromagnetic mechanism allows it to be opened remotely via the controller. Two 550-class brushed motors provide speeds of up to 80 m/min, while propeller guards reduce the risk of weed becoming tangled.
Modular Carbon version hull

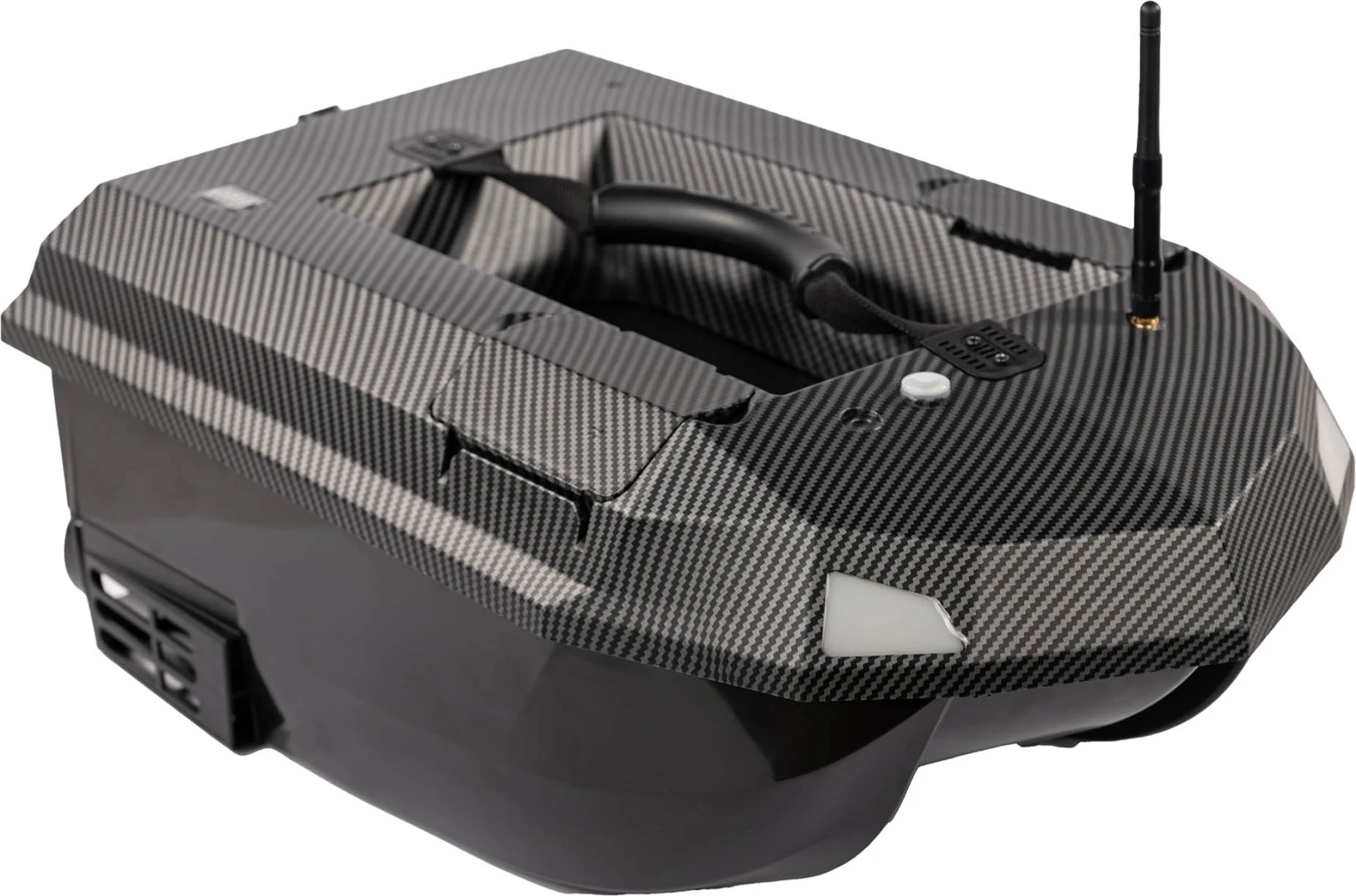

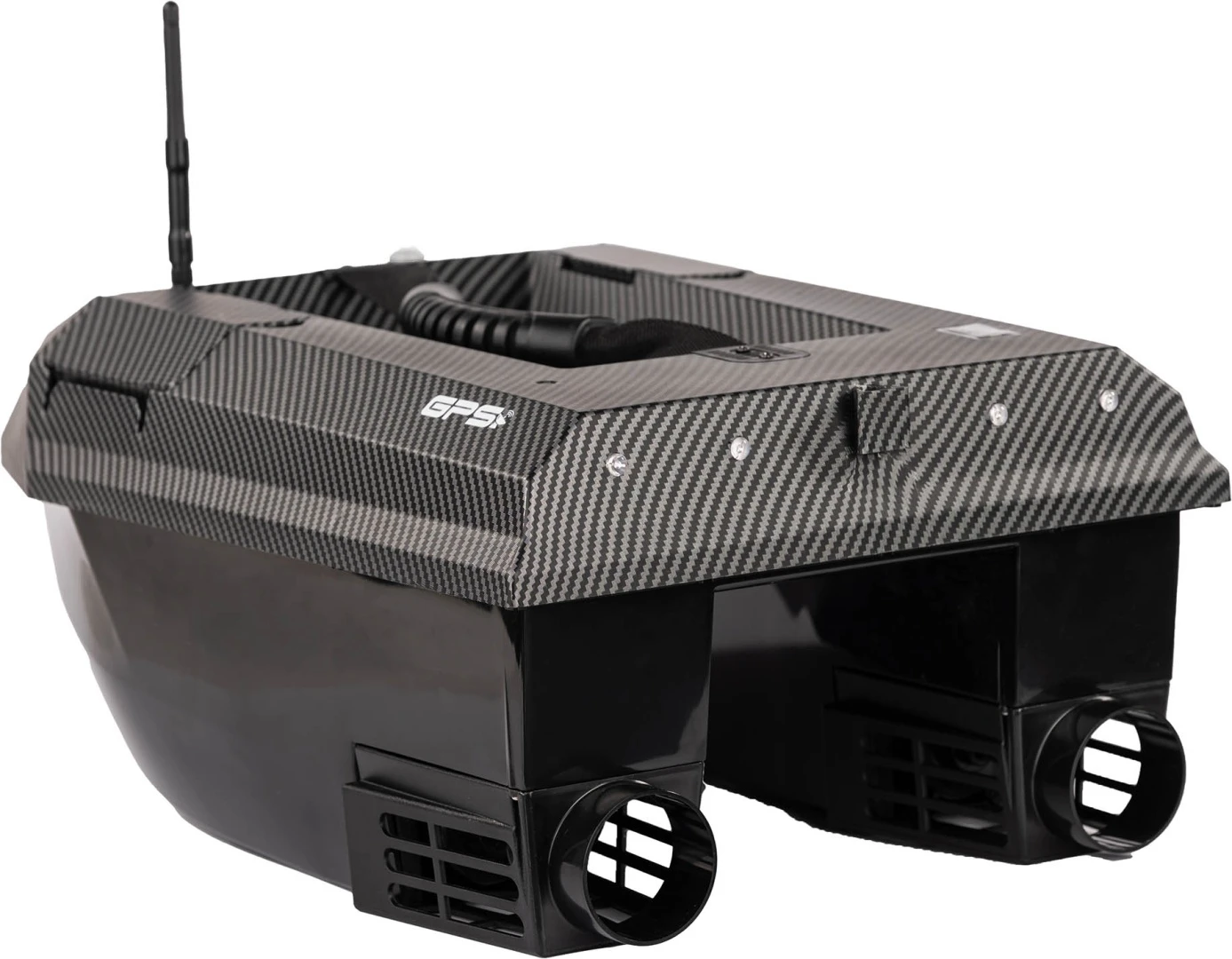

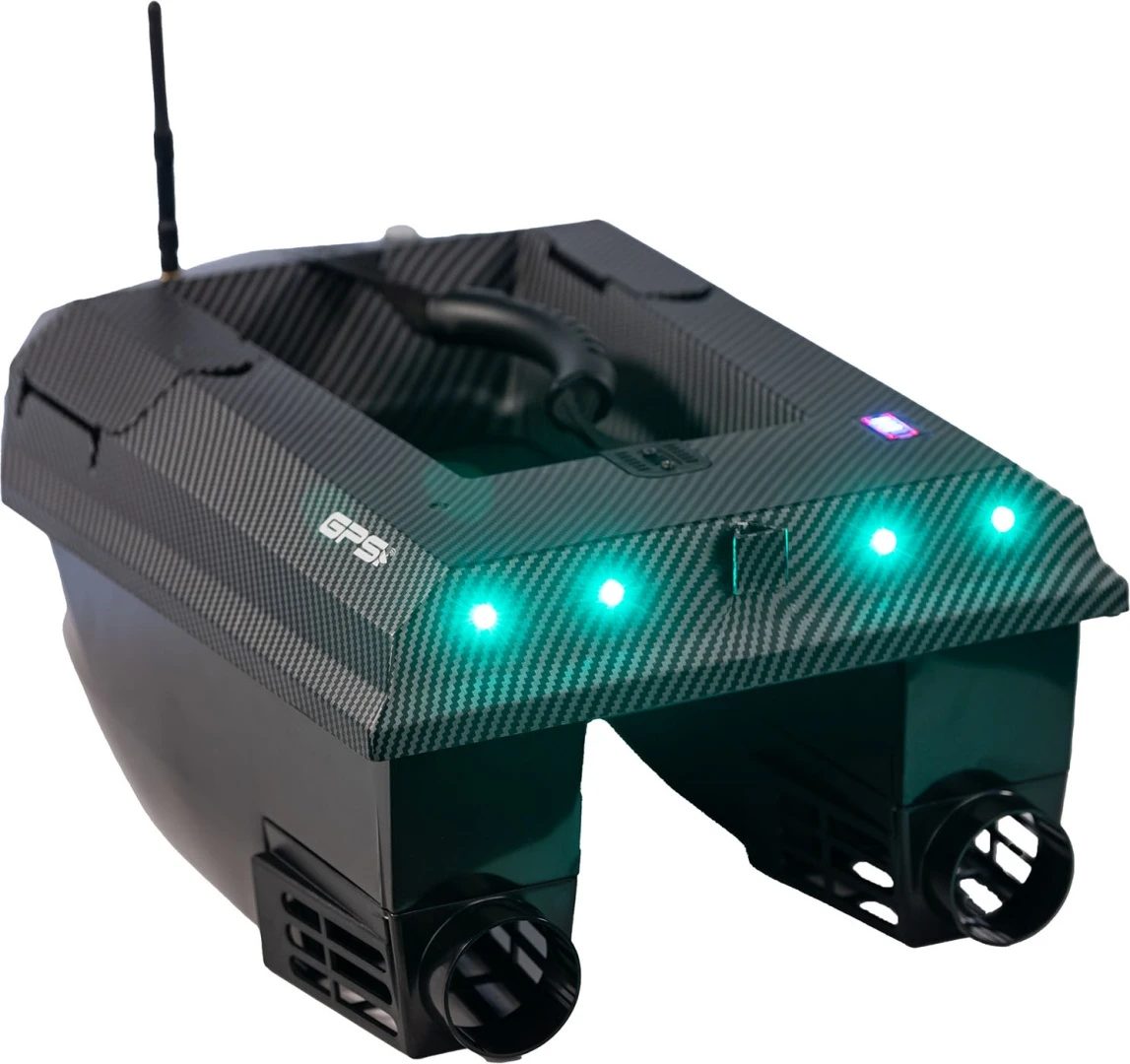

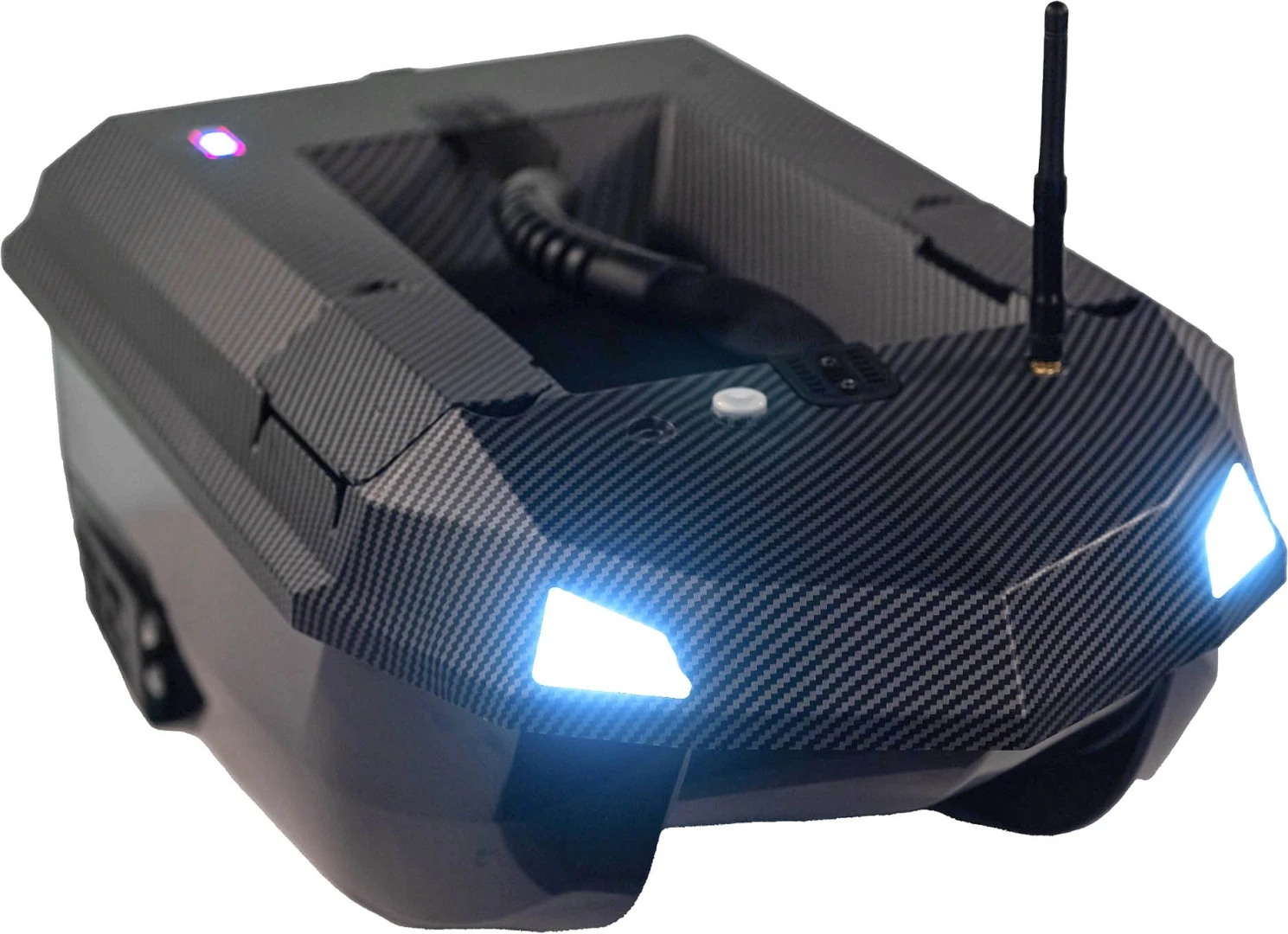

The catamaran-style hull is made from ABS material resistant to damage and UV radiation. The modular design, separate component connections and moisture-protected main board make diagnostics and servicing easier. The Carbon version is complemented by remote-controlled lighting, with white Dragon Eye headlights at the front and four green LEDs at the rear.
Who is it for and in what conditions:
- For carp anglers who want to map the bottom and deliver rigs at the same time.
- For locating humps, holes, obstacles and changes in bottom hardness.
- For finding fish holding in mid-water when fishing with a Zig Rig.
- For repeatable baiting to spots saved in the GPS system.
- For longer-distance baiting requiring autopilot and automatic return functions.
Set includes:
- Manuowell Assassin V2 Carbon bait boat.

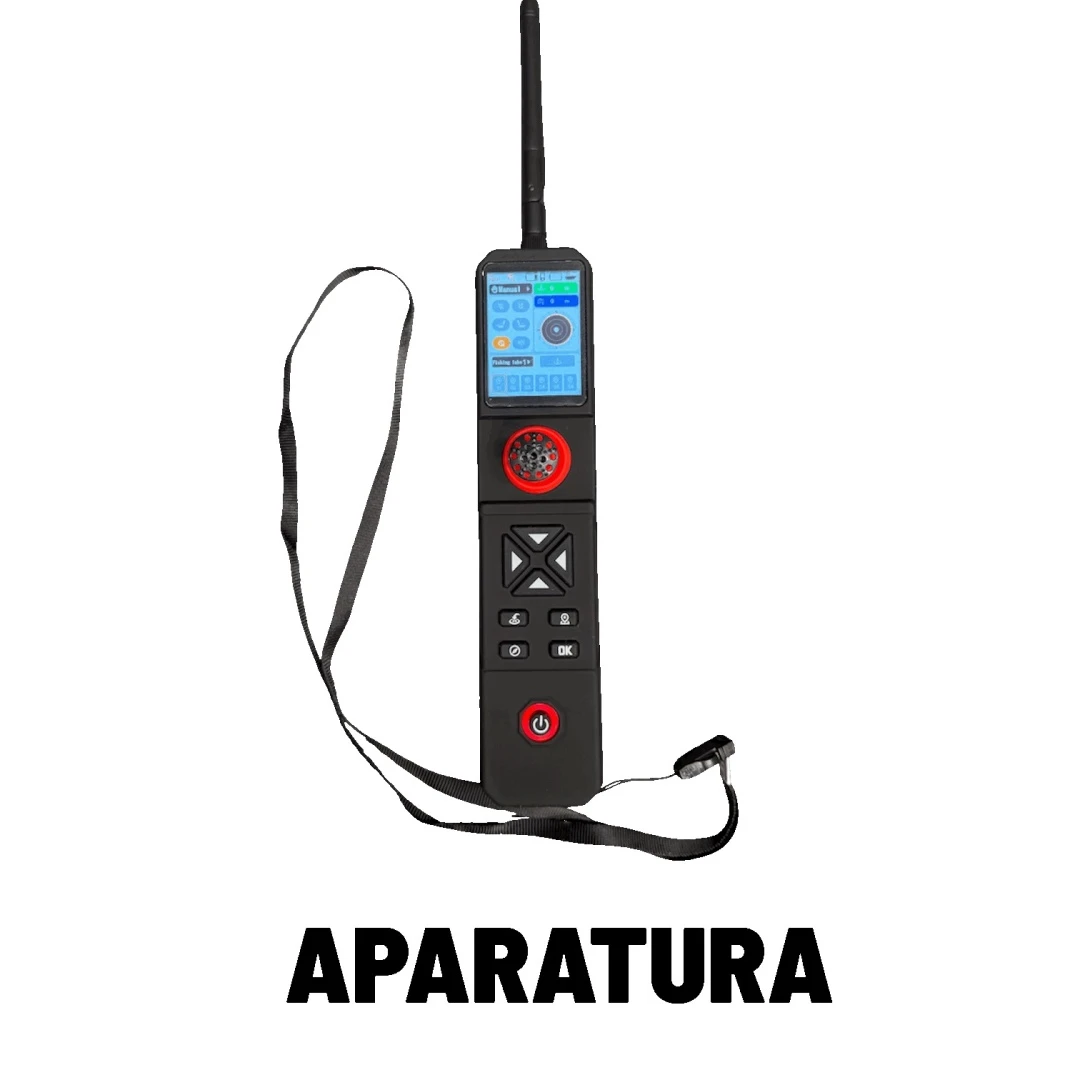

- Controller with display and battery.
- Manuowell M700 fish finder.
- Fish finder monitor and transmitter.
- Fish finder battery.

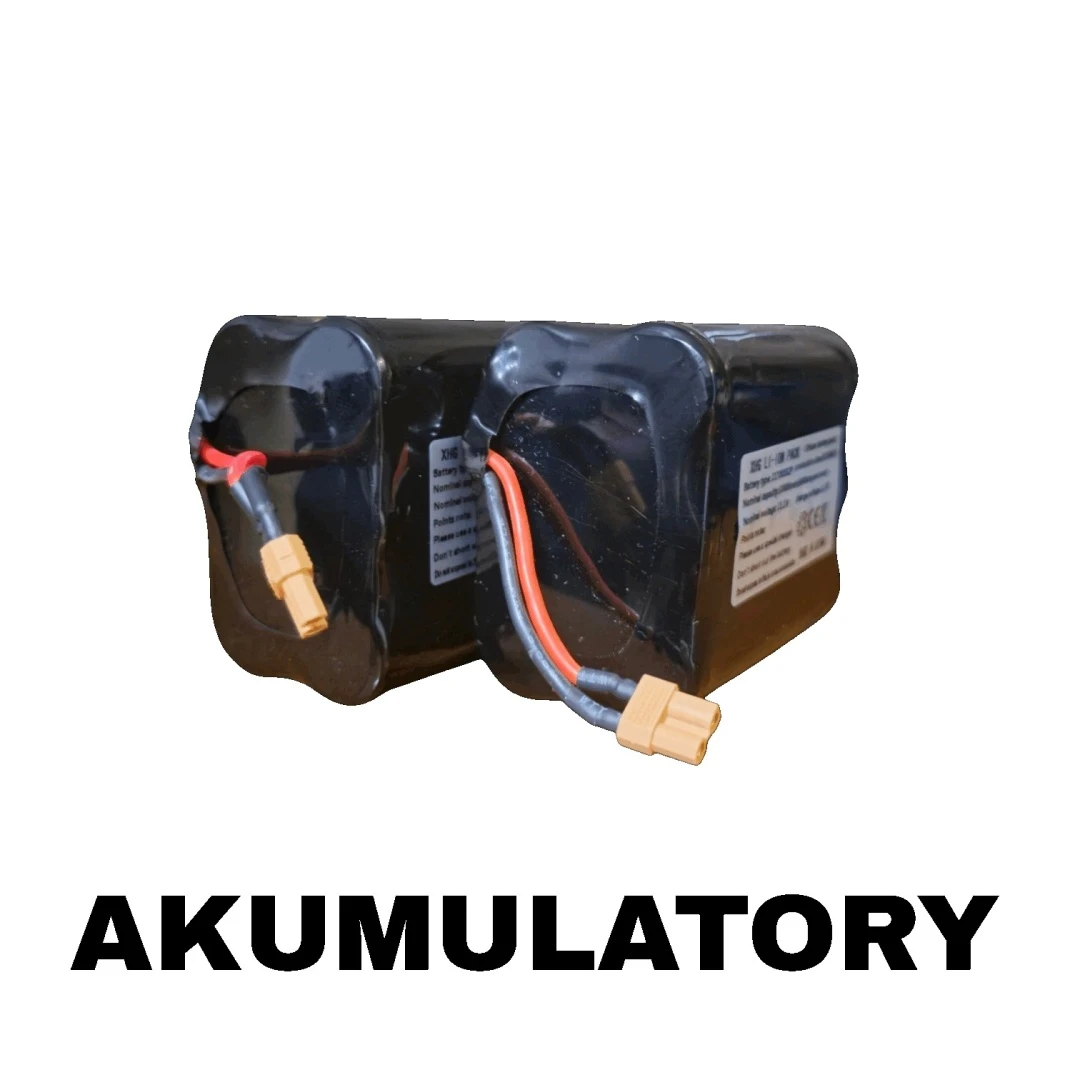

- Two 11.1 V 8 Ah Li-Ion batteries for the boat.

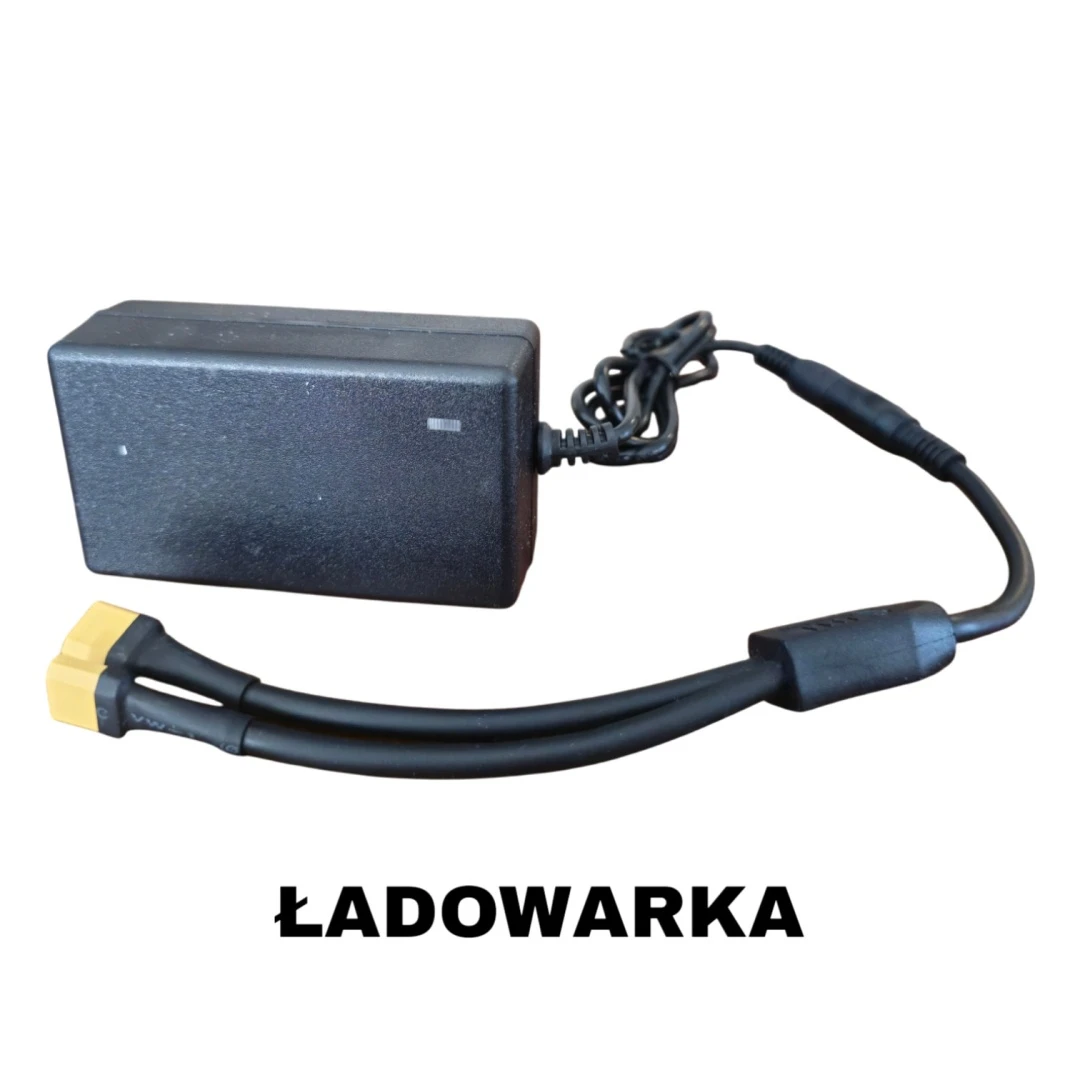

- Battery charger.

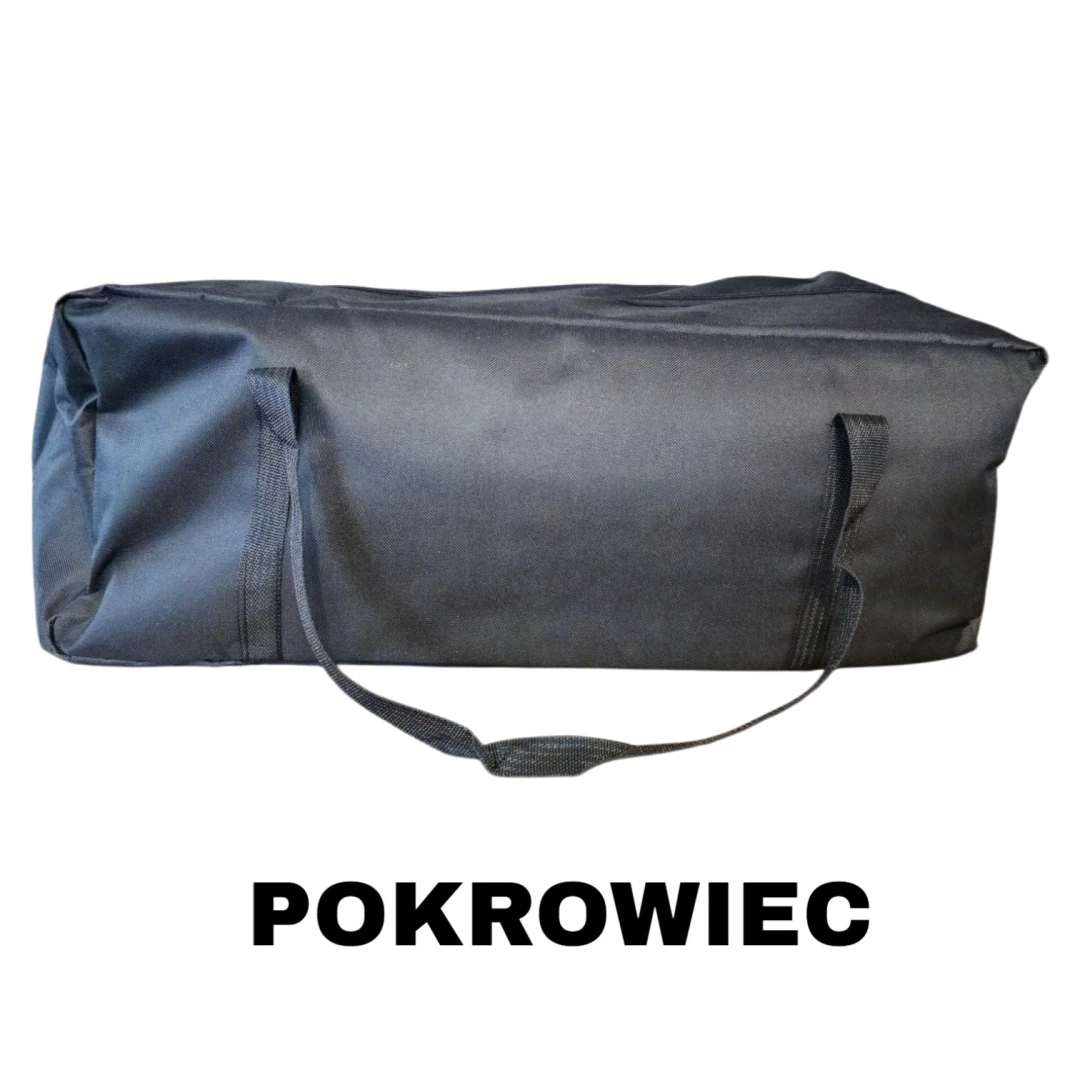

- Matching carry bag with two side pockets.
Product specifications:
- Equipped with GPS, autopilot and Manuowell M700 fish finder.
- Features 36 GPS waypoints.
- Allows bottom hardness discrimination.
- Designed for locating fish and bottom features.
- Equipped with the Auto Home function.
- Automatic return after signal loss or when the battery level is low.
- Anchor function, cruise control and automatic straight-line navigation.
- Correction of deviation from the set course.
- Remote control of the bait hopper and lighting.
- Electromagnetic hopper opening mechanism.
- Protected propellers.
- Motor overload protection.
- Modular design for easier servicing.
- Flexible antenna resistant to accidental damage.
Technical specifications:
| Parameter | Value |
|---|---|
| Product type | Bait boat with GPS, autopilot and fish finder |
| Colour version | Carbon |
| Fish finder model | Manuowell M700 |
| Hull design | Catamaran |
| Hull material | ABS resistant to damage and UV radiation |
| Boat dimensions | 53 × 34 × 23 cm |
| Boat weight | 4 kg |
| Payload capacity | Up to 3 kg |
| Bait hopper dimensions | 27 × 16 × 8 cm |
| Propulsion | 2 x 12 V 550-class brushed motors |
| Maximum speed | Up to 80 m/min |
| Boat control range | Up to 500 m |
| Number of GPS waypoints | 36 |
| Boat power supply | 2 x 11.1 V 8 Ah Li-Ion batteries |
| Declared distance per charge | 9–13 km |
| Fish finder range | Up to 300 m |
| Fish finder frequency | 2.4 GHz |
| Number of fish finder channels | 20 |
| Display size | 4.3 inches |
| Display resolution | 480 × 272 pixels |
| Number of display colours | 65,536 |
| Monitor power supply | 6–12 V |
| Transmitter power supply | 6–12 V |
| Supported languages | Polish, English, French |
| Controller charging port | USB-C |
