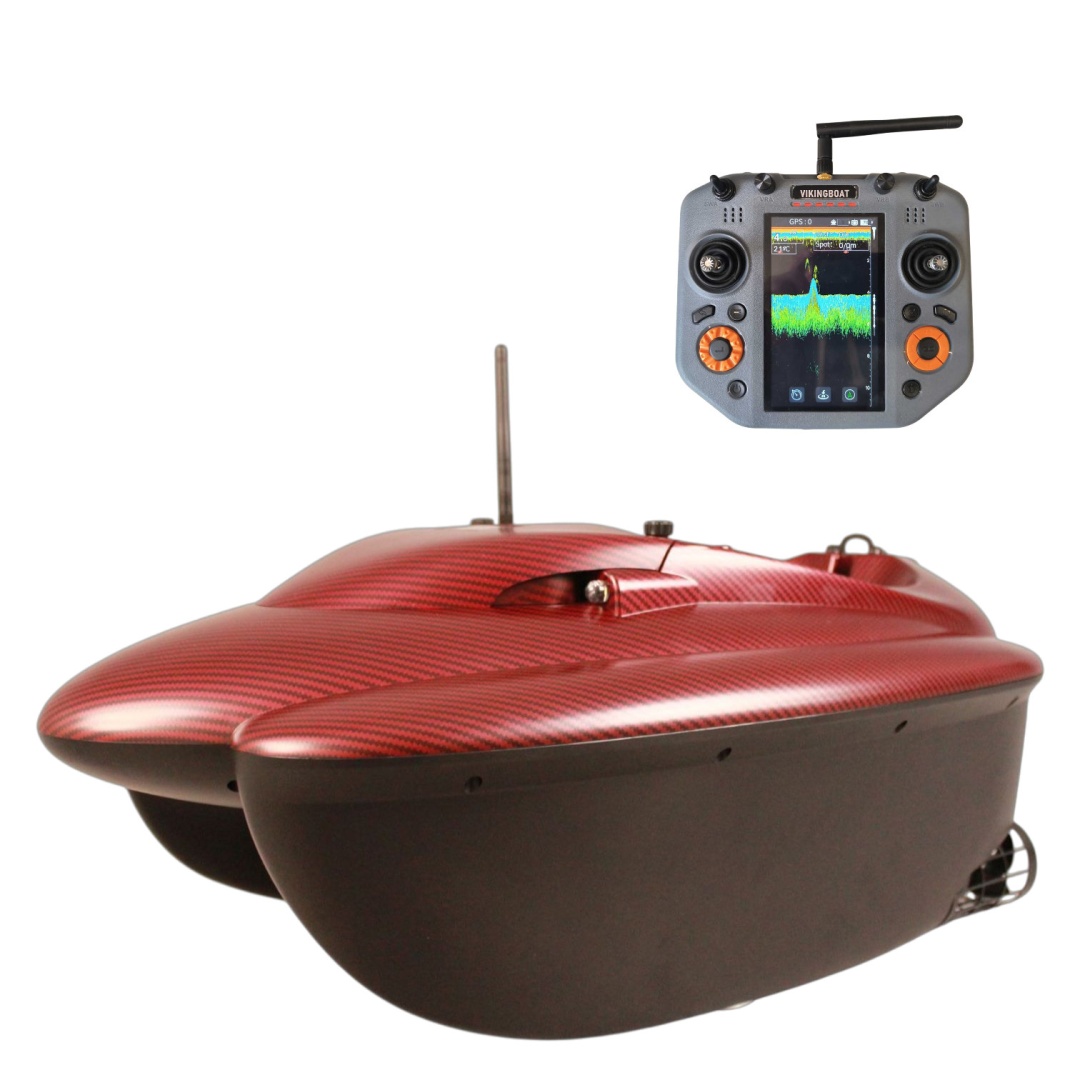

Viking Boat RS Mini PRO Carbon Red – advanced bait boat with CHIRP All-In-One sonar and GPS system
The Viking Boat RS Mini PRO Carbon Red is a compact premium bait boat designed with high precision performance, a comprehensive CHIRP All-In-One sonar module, and an advanced GPS navigation system with waypoint recording capability. The Carbon Red version stands out with its distinctive carbon-style red finish, delivering premium aesthetics while maintaining full material durability. This model is crafted for anglers who perform long-distance bait deliveries and demand stability, ergonomic design, and detailed bottom readings.
Carbon Red construction in a modular system
The hull, made from durable ABS material in Carbon Red, is mounted in a stable catamaran structure. This design ensures high resistance to tilting and excellent handling in crosswind conditions as well as when moving with a full bait compartment. The modular electronics layout means each subsystem — from navigation and lighting to the antenna bus — has a separate diagnostic port, allowing for easy and fast servicing.
The mainboard is protected with moisture-resistant coating and enclosed in a sealed housing with heat-dissipating radiators. The control unit includes an overload protection feature that cuts power if the load exceeds the allowable limit.

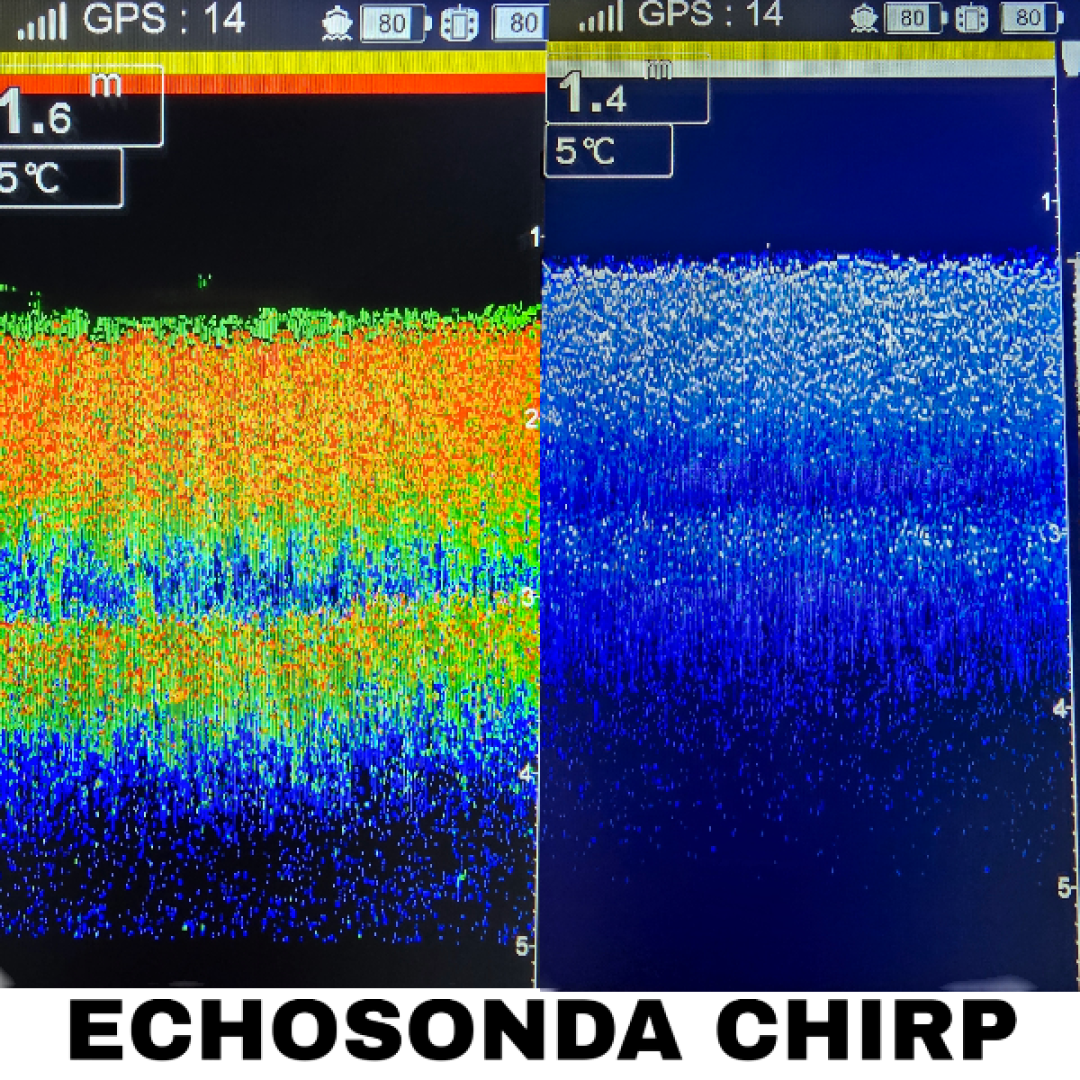

Touchscreen controller and CHIRP All-In-One sonar
The touchscreen controller serves as the main command center for the boat. The entire sonar software is integrated into the controller display system, eliminating the need for additional monitors. CHIRP technology operates on multiple frequencies, providing precise bottom mapping and clear fish detection.
The system displays depth, water temperature, bottom structure, and fish location, as well as information on substrate hardness and softness. Interference filters and sensitivity adjustments allow sonar settings to be tailored to water clarity. The package also includes depth and fish alarms and a training simulator.
CHIRP All-In-One sonar specifications:
- Real-time bottom topography reading.
- Displays water depth and temperature.
- Shows substrate hardness and softness.
- Indicates fish with size and depth.
- Adjustable sensitivity and range parameters.
- Interference filter support.
- Multiple color image modes.
- Fish and depth alarms.
- Simulation mode available.
- Sonar readings up to 700 meters.
- Fully integrated with the controller in an All-In-One system.
GPS system with 52 waypoint memory and Auto Home feature
The controller also functions as the navigation unit. The GPS system supports storing up to 52 waypoints and includes an Auto Home feature that activates if signal is lost. Automatic course keeping stabilizes the boat’s path regardless of wind direction. The interface shows distance to the selected waypoint and current battery status. Operation is via a 2.4 GHz chipset with multiple channel options, ensuring stable signal transmission within a range of 500 m to 1 km.

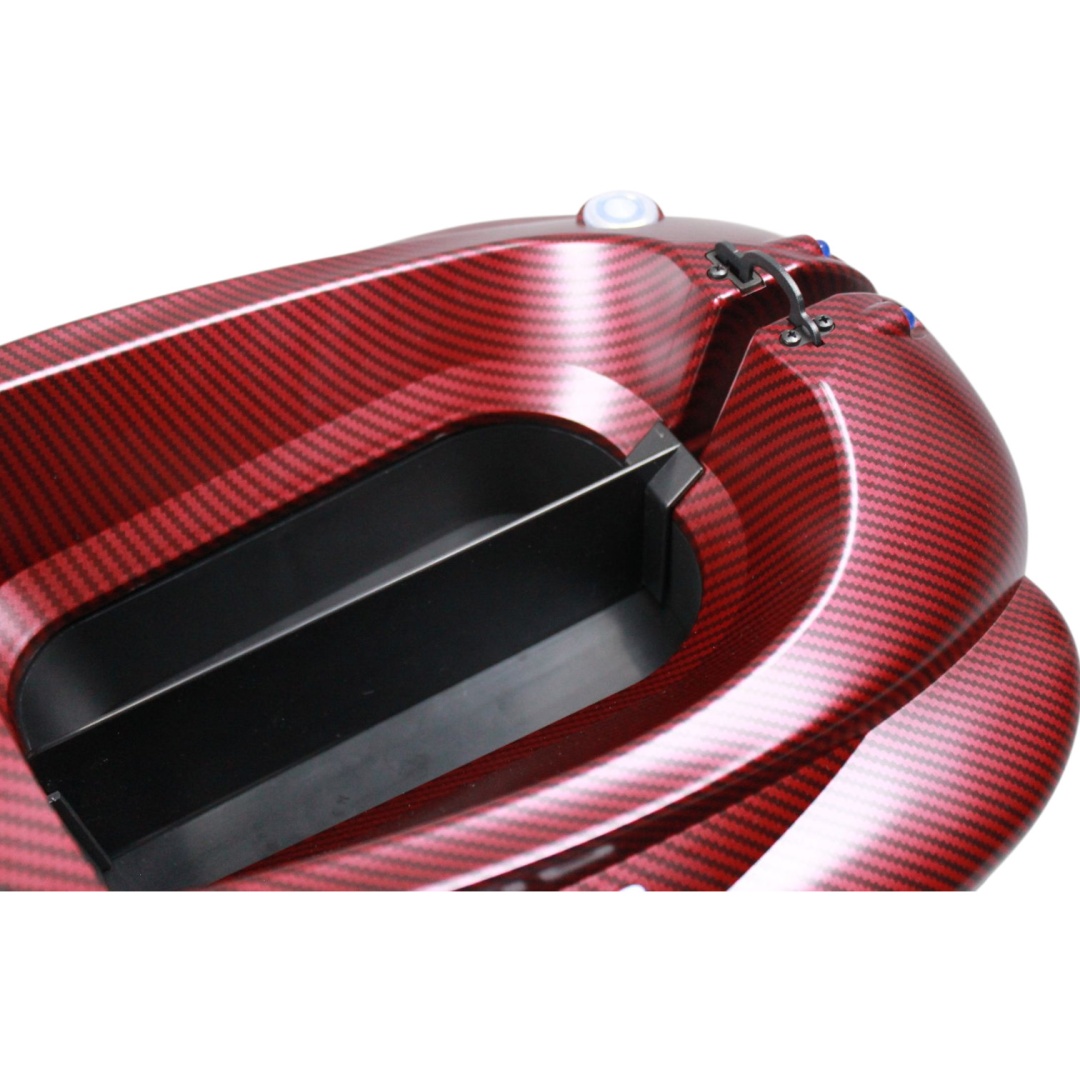

3 kg bait compartment
The bait compartment holds up to 3 kg of payload and opens via electromagnets with additional neodymium magnet assistance. This solution improves opening precision and speed. Cutouts in the hatch allow for loading the rig from above and leading the line in any direction. The cargo space dimensions accommodate both loose mixes and larger bait fractions.

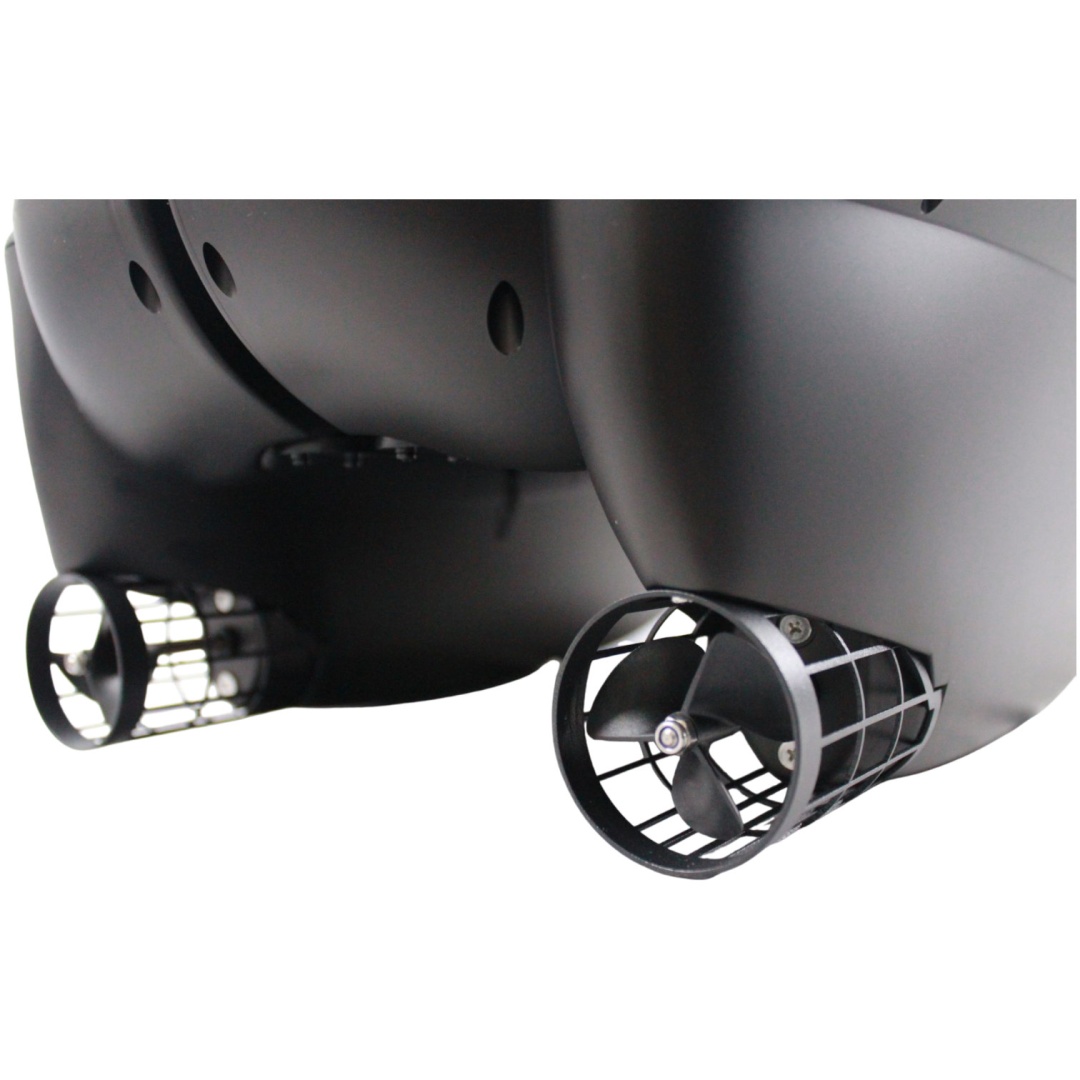

550 class 12 V motors
The Carbon Red version is powered by two 12 V class 550 motors. The use of neodymium magnets increases efficiency and enables smooth operation with low power consumption. The motors are characterized by quiet operation, stability, and no shaft runout. The propeller guard prevents vegetation entanglement and reduces the risk of snagging the line. The boat’s maximum speed reaches 125 meters per minute.

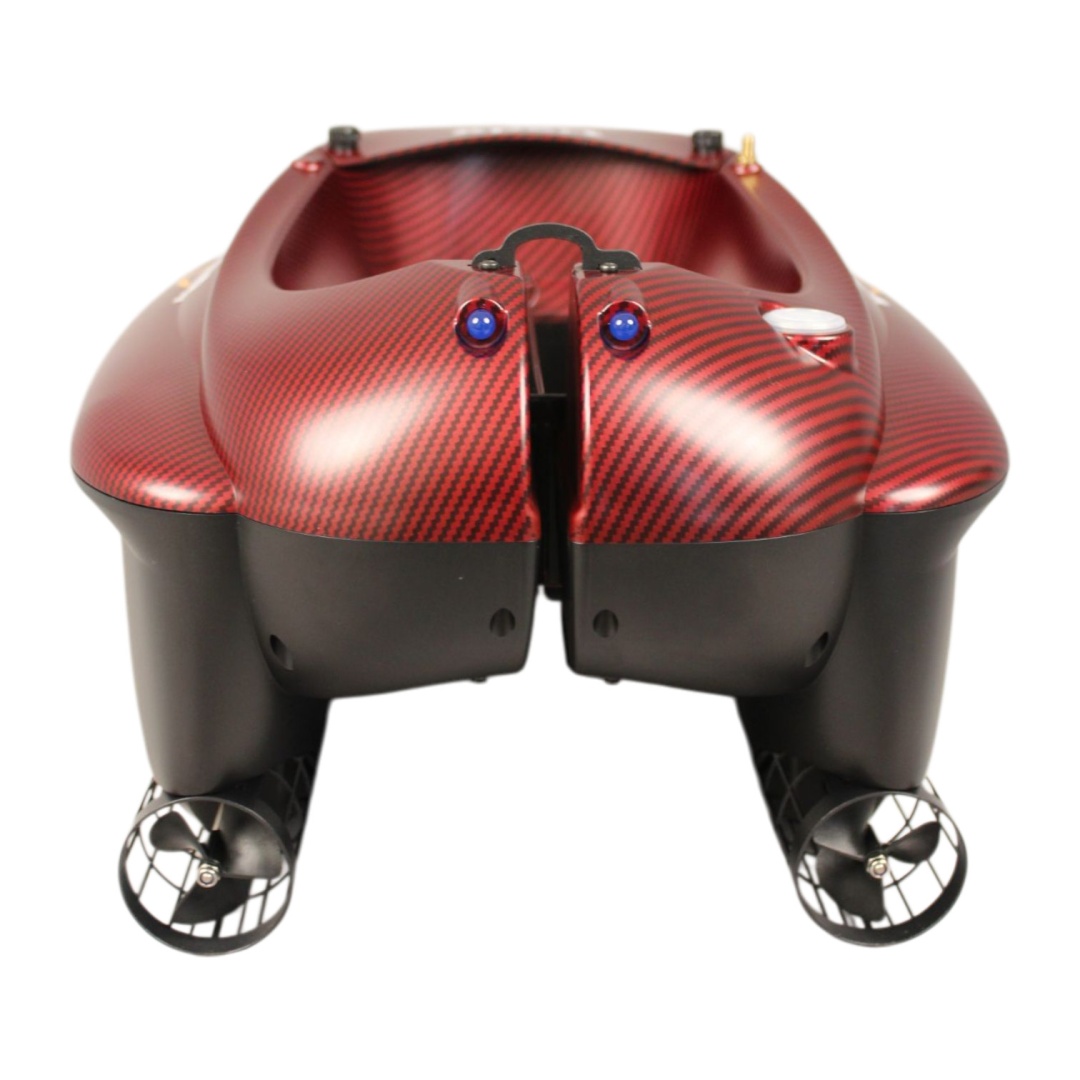

LED lighting controlled by remote
This model features white front LED lights and blue rear position lighting. Lighting control is managed directly from the remote, facilitating work during night bait deliveries.
15.4 Ah Li-Ion battery and power system
The set includes a 15.4 Ah 11.1 V Li-Ion battery, charger, and a protective plastic housing. The battery is equipped with a balancer that prevents overcharging and excessive discharge. Thanks to the energy-efficient drive system, it can cover up to 15 km on a single charge.
Who the Viking RS Mini PRO Carbon Red is best suited for:
✔ Anglers seeking detailed bottom analysis with CHIRP sonar.
✔ Those performing long bait deliveries at distances of 500–1000 meters.
✔ Carp anglers requiring stability and a large bait compartment.
✔ Users expecting full GPS integration, Auto Home, and autopilot functionality.
✔ Those valuing the durability and aesthetics of the Carbon Red hull.
Set includes:

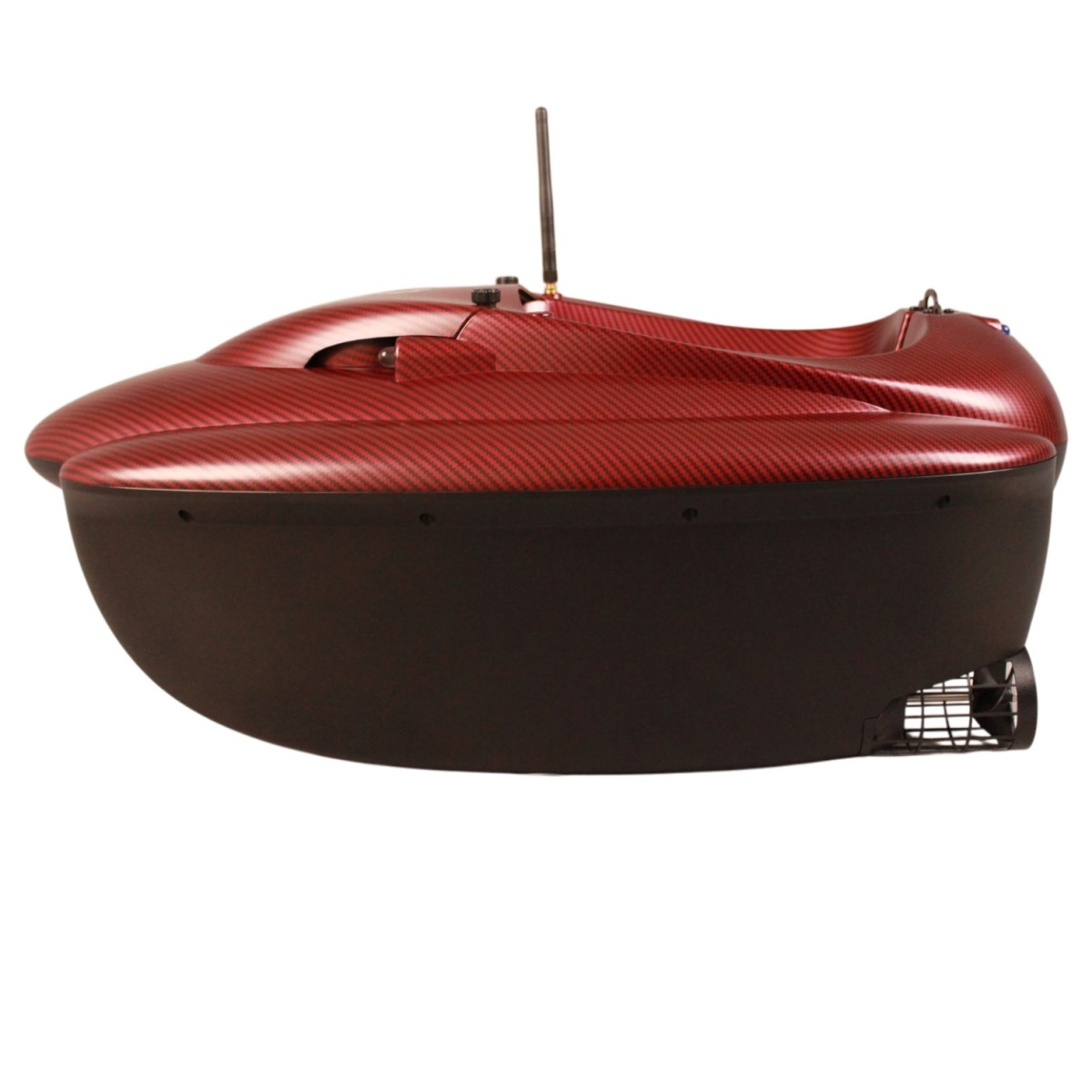

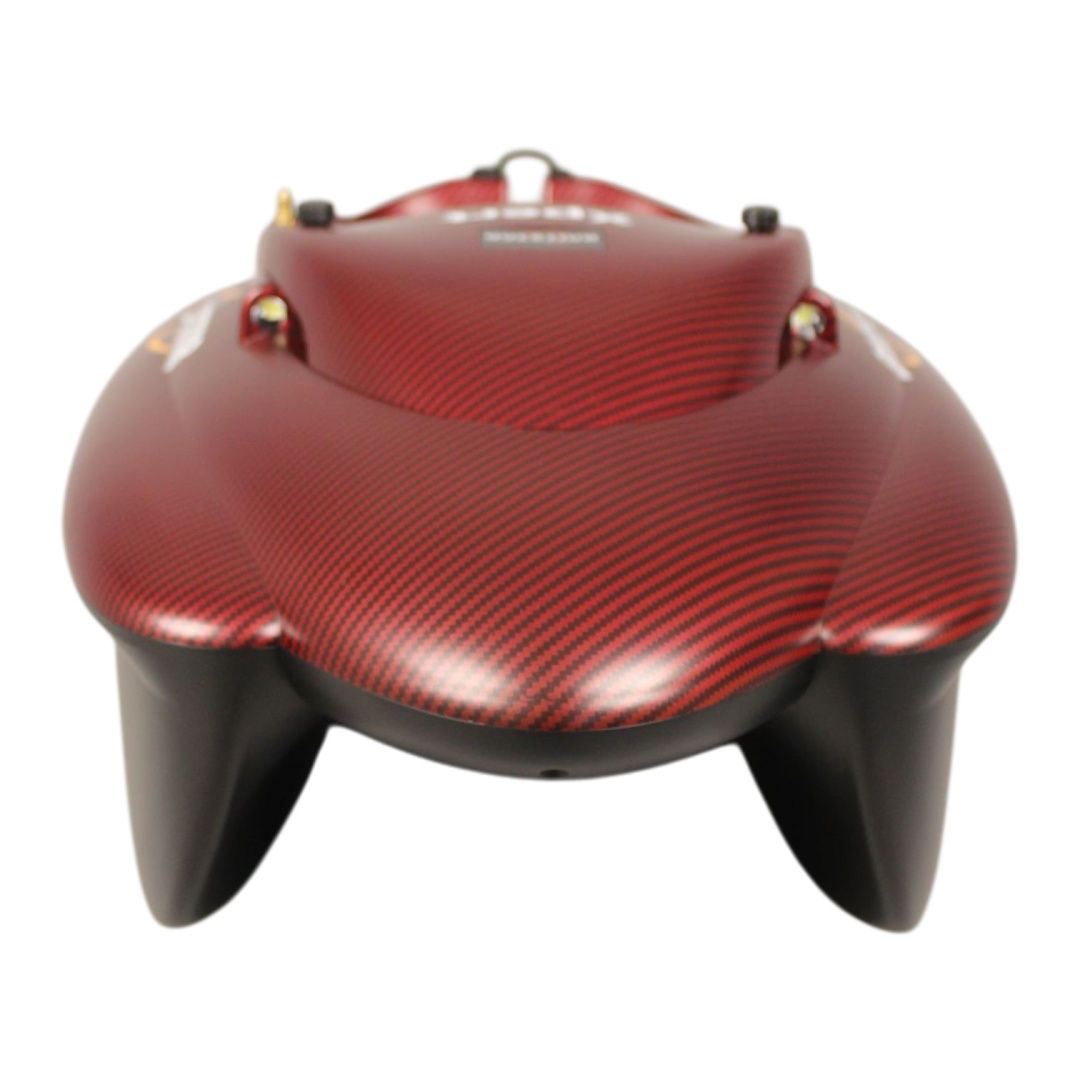

- Viking Boat RS Mini PRO Carbon Red

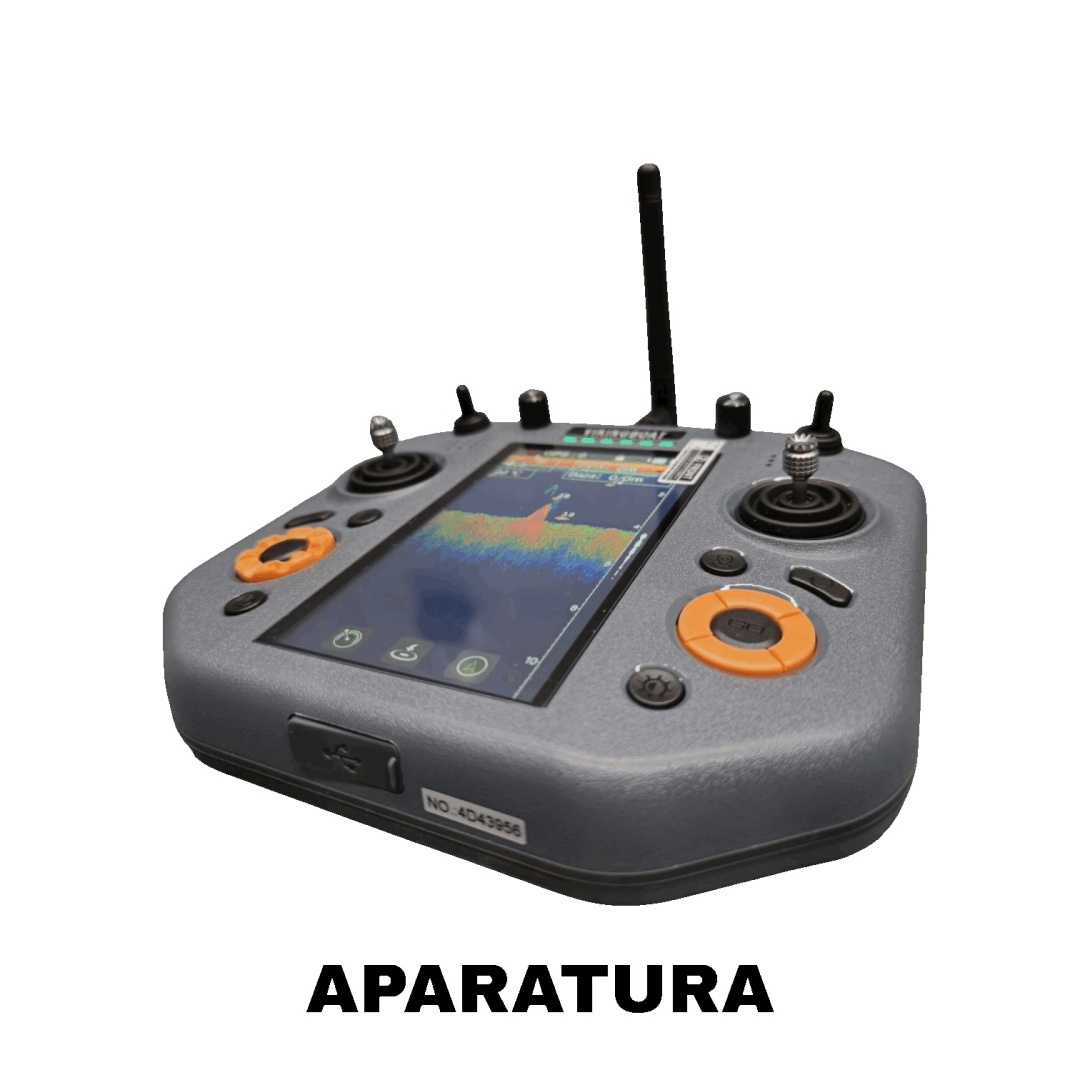

- Touchscreen controller with CHIRP All-In-One sonar

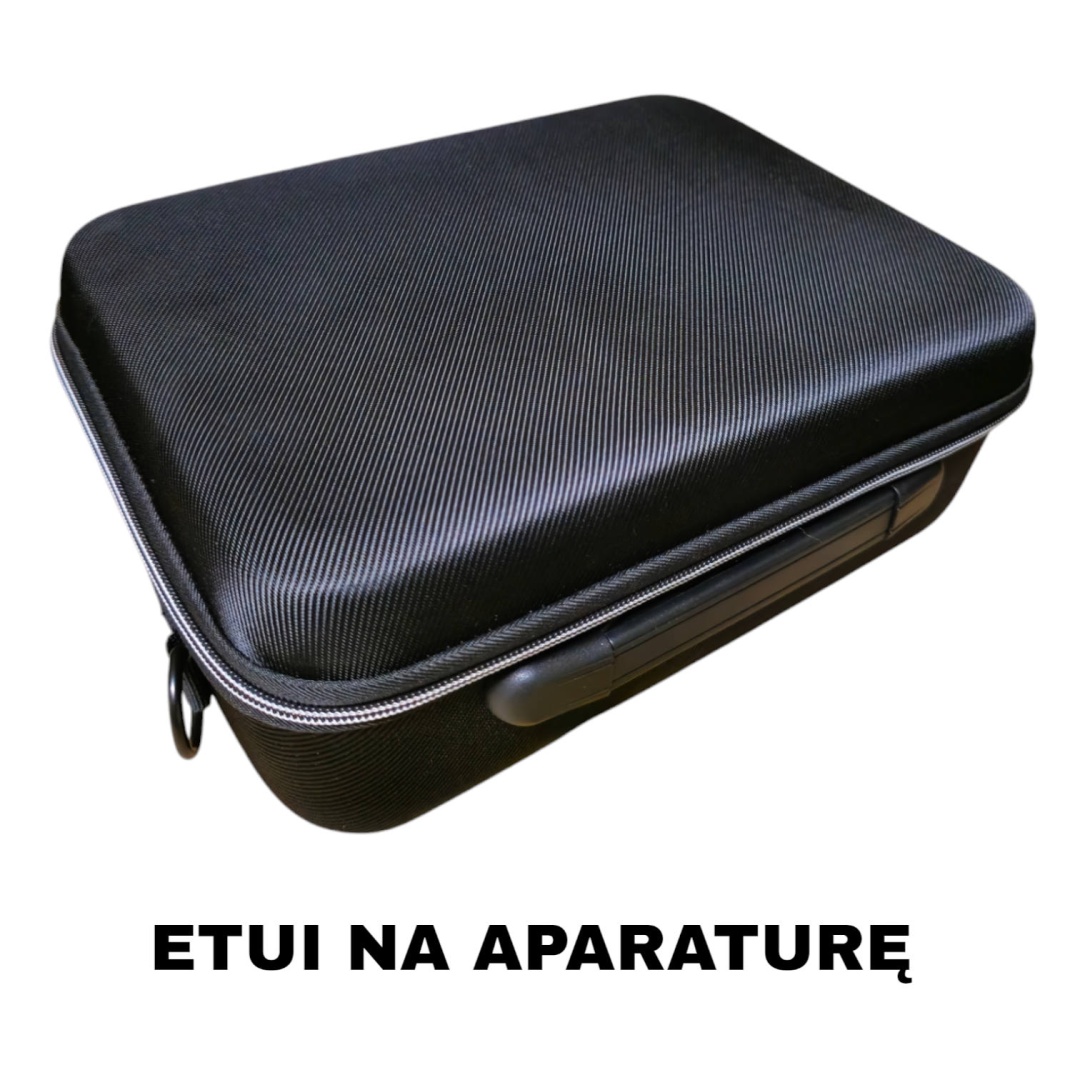

- Protective case for the controller

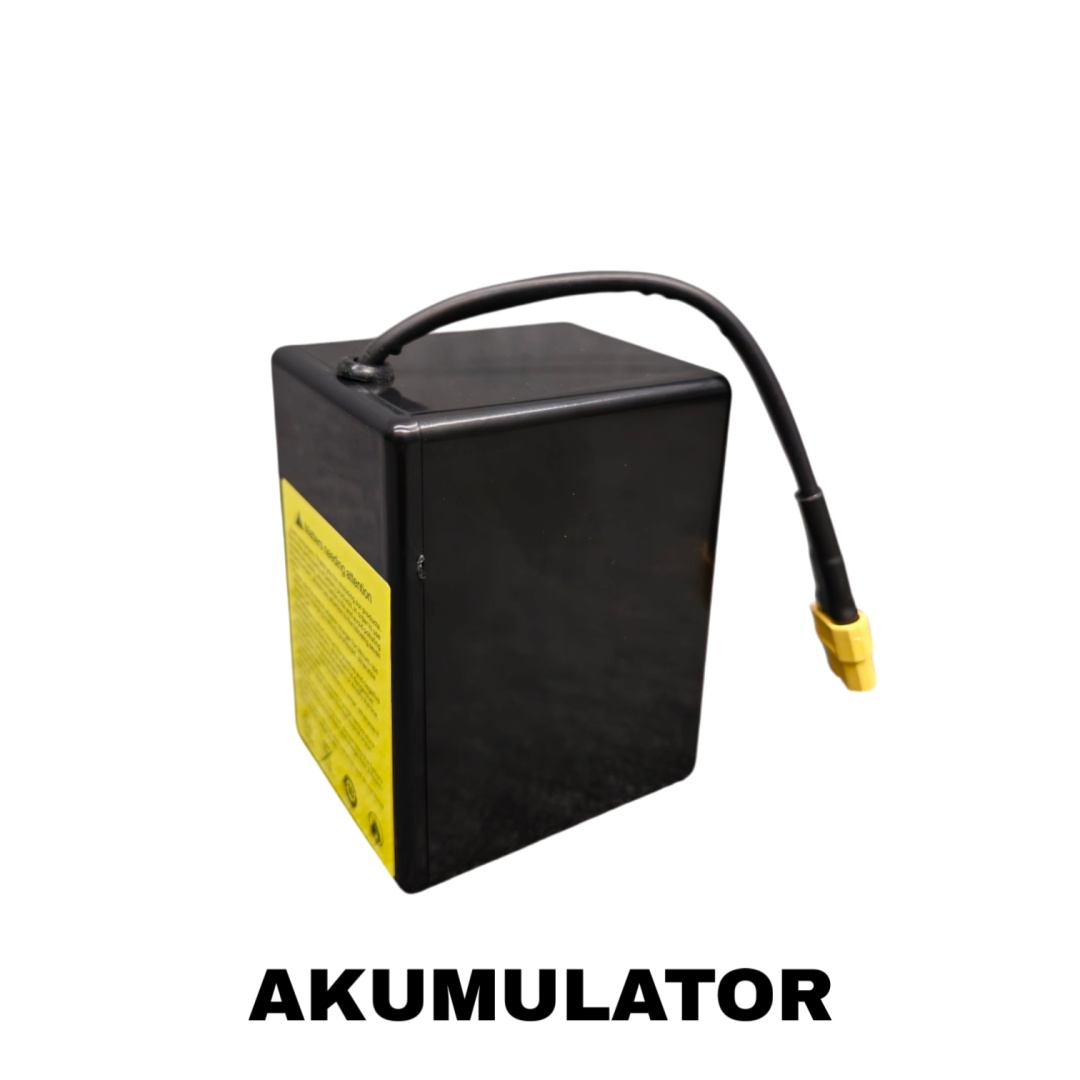

- 15.4 Ah 11.1 V Li-Ion battery

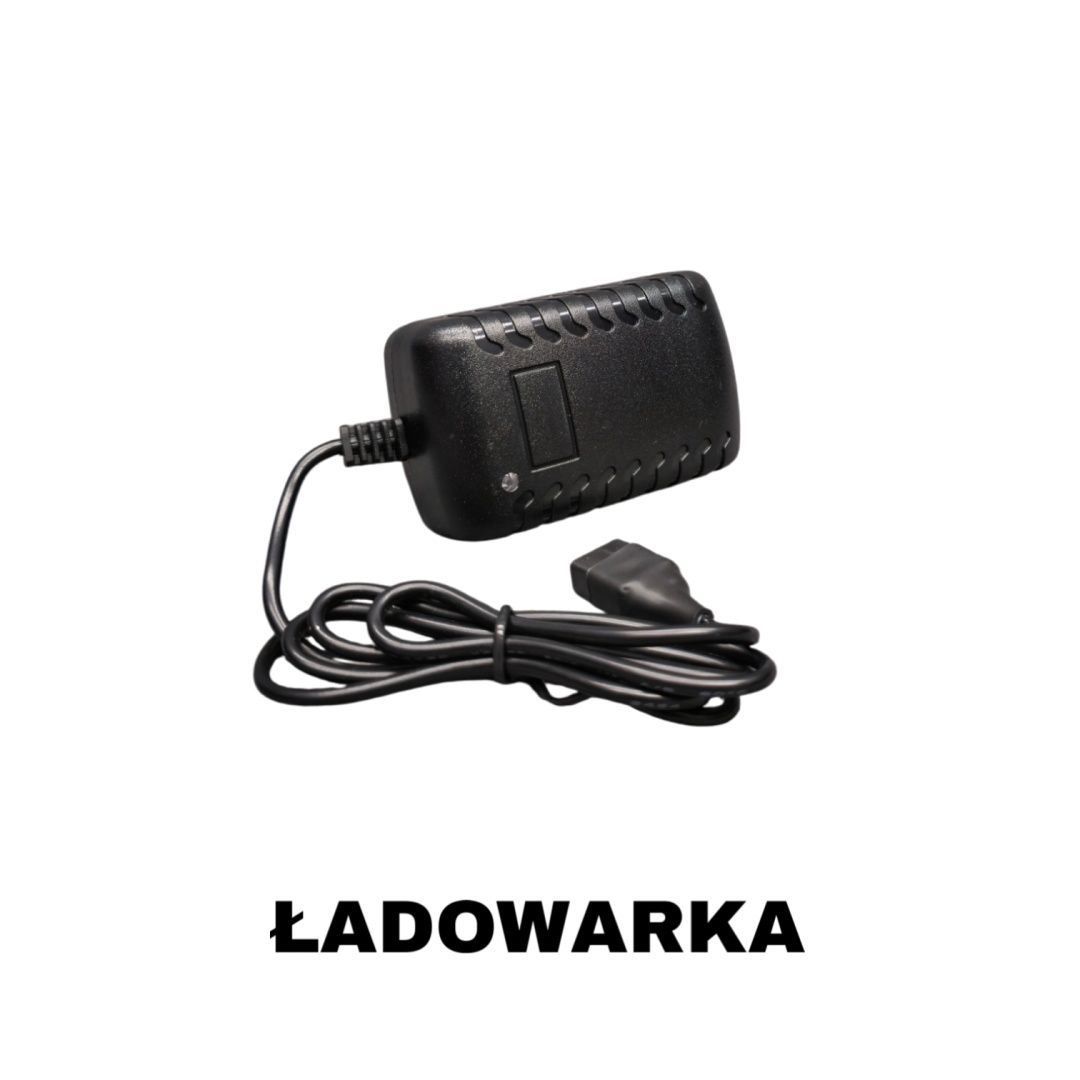

- 11.1 V charger

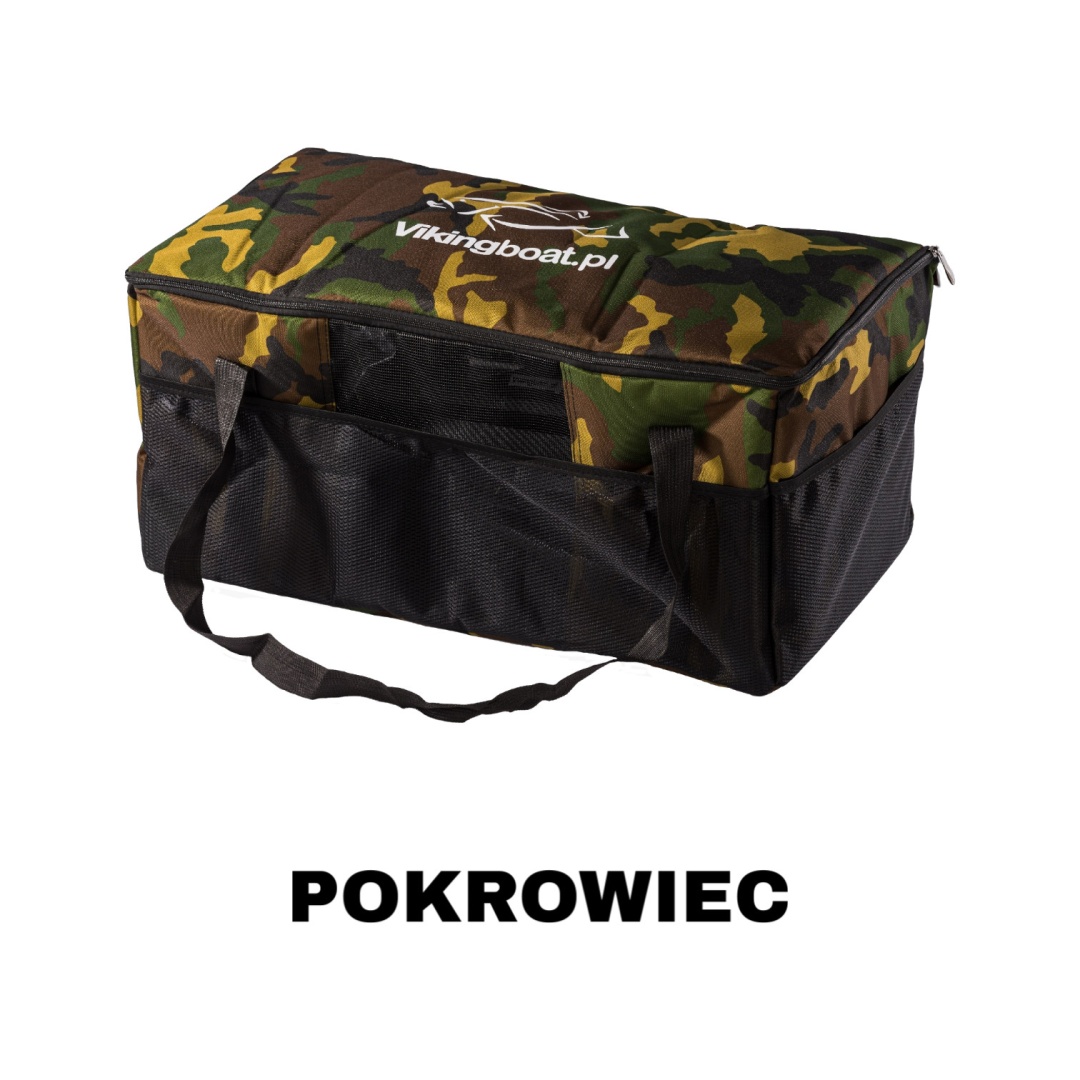

- Transport cover
- Documentation and user manual
Product specifications:
- Equipped with CHIRP All-In-One sonar operated via the controller.
- Includes GPS system with 52 waypoints and Auto Home.
- Maximum speed up to 125 m/min.
- 3 kg bait compartment.
- ABS hull with Carbon Red finish.
- 12 V class 550 motors.
- Control range from 500 to 1000 meters.
- LED lighting controlled from the remote.
- Modular construction for easy servicing.
Technical specifications:
- Hull dimensions: 55 × 32 × 24 cm, ABS Carbon Red
- Compartment size: 24 × 18 × 13 cm, 3 kg capacity
- Motors: 12 V, class 550
- Speed: up to 125 m/min
- Range: 500 m – 1 km
- Sonar: CHIRP, 700 m reading range
- GPS: Auto Home, 52 waypoints
- Battery: Li-Ion 15.4 Ah
- Lighting: white front LED, blue rear LED
- Construction: catamaran
